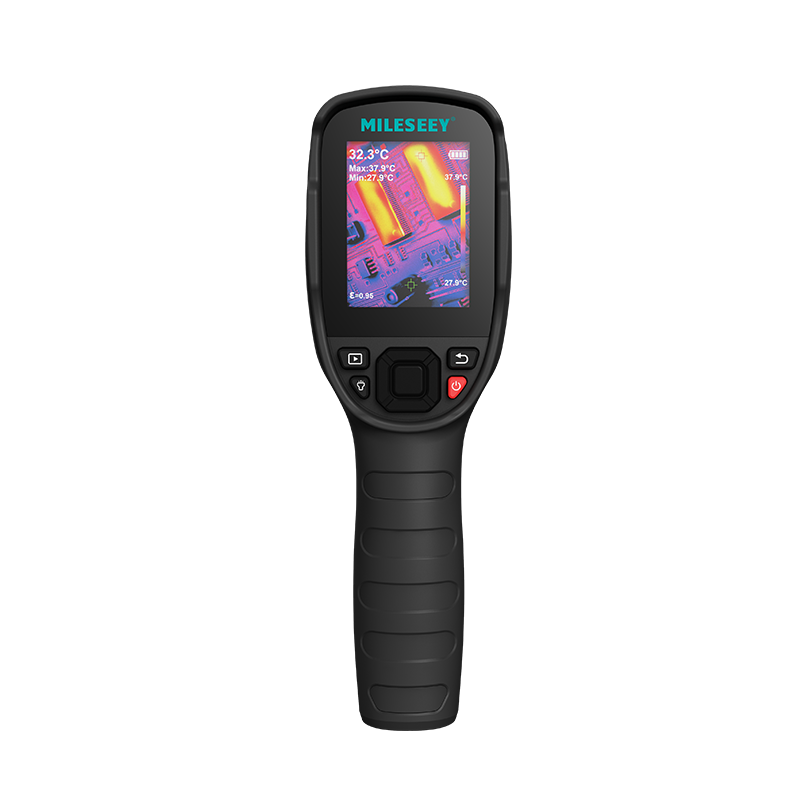

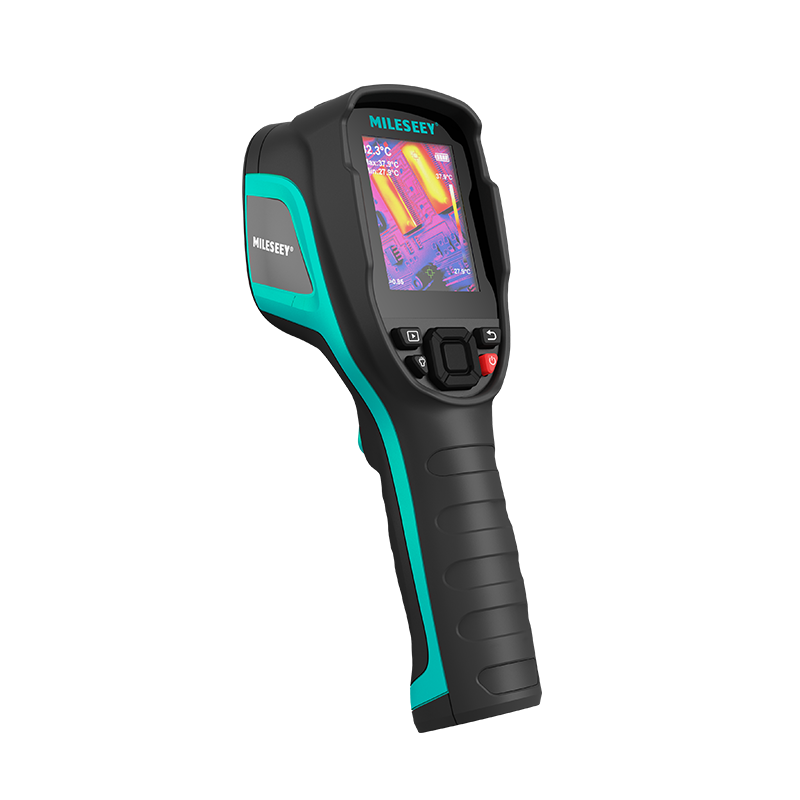

TR256B Infrared Thermal Imaging Camera with Optional Visible Light Camera 256*192
- 2.8" color LCD,IR resolution 256*192
- Infrared Image resolution as
- Wide temperature range ...




Free Shipping
Brand Authenticity
Easy Return
Awards For Mileseey



New Version
TR256B | TR256E
Thermal Imaging Camera
Infrared Image resolution as 256*192
Optional functions for TR256B only:
Dual-camera for infared or visable light

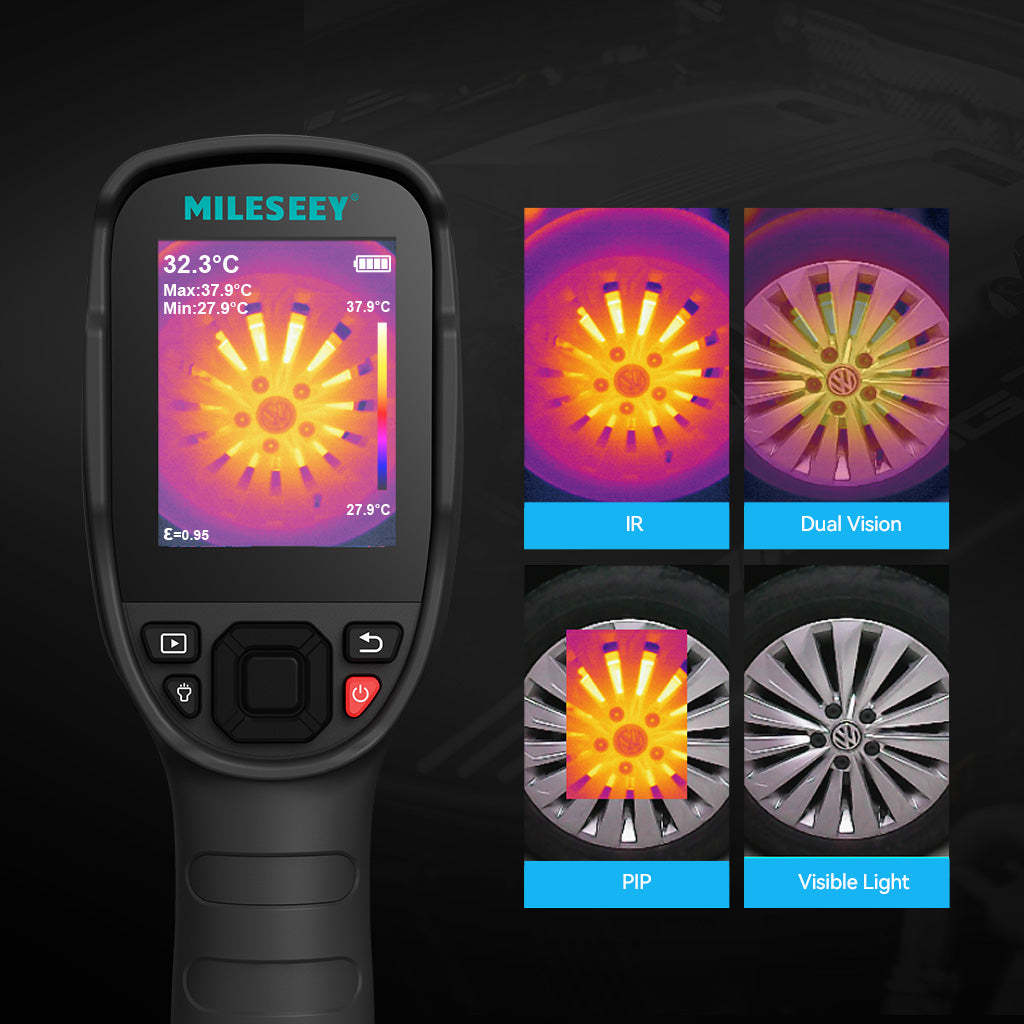

Visible Light Camera
(for TR256B only)

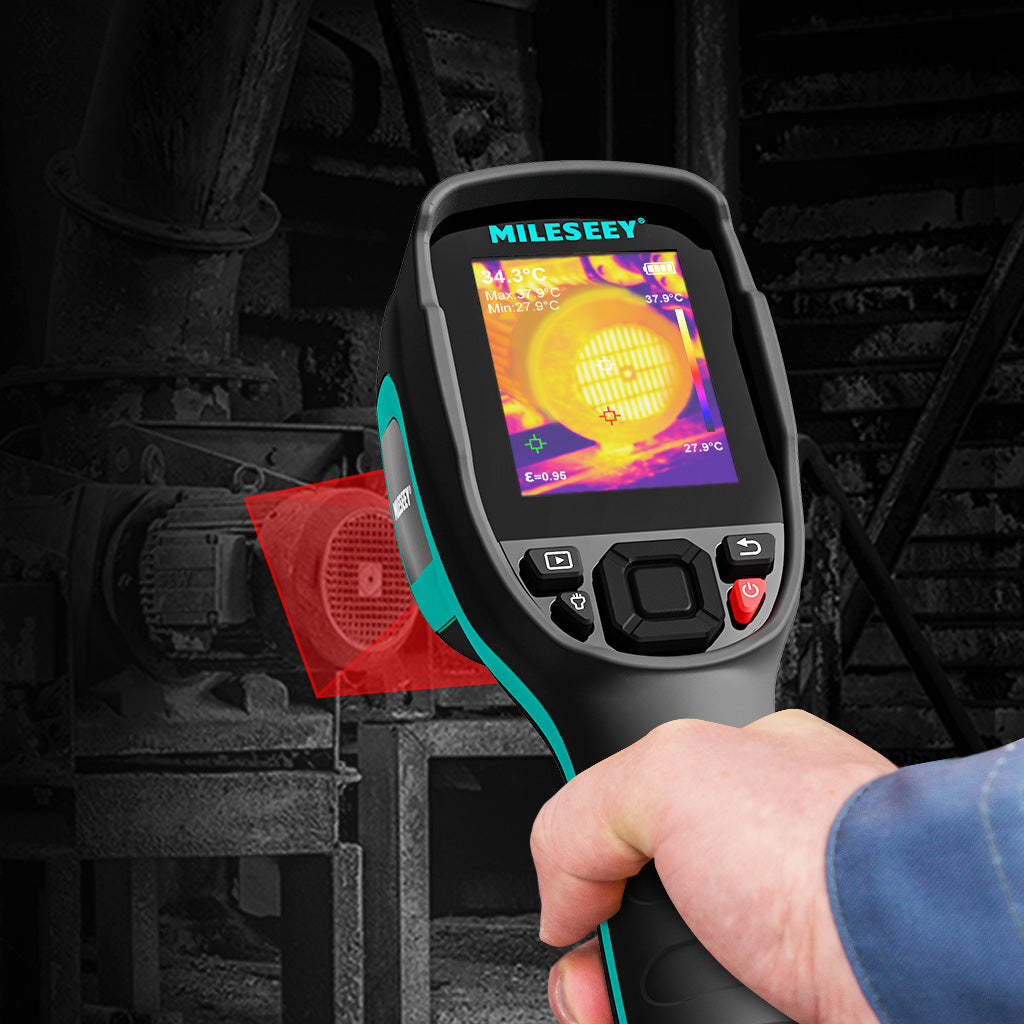

Mileseey TR256B infrared thermal scanner
is designed with infrared, visible light and
an automatic hot/cold spot tracker,
providing people with Visible Light Camera

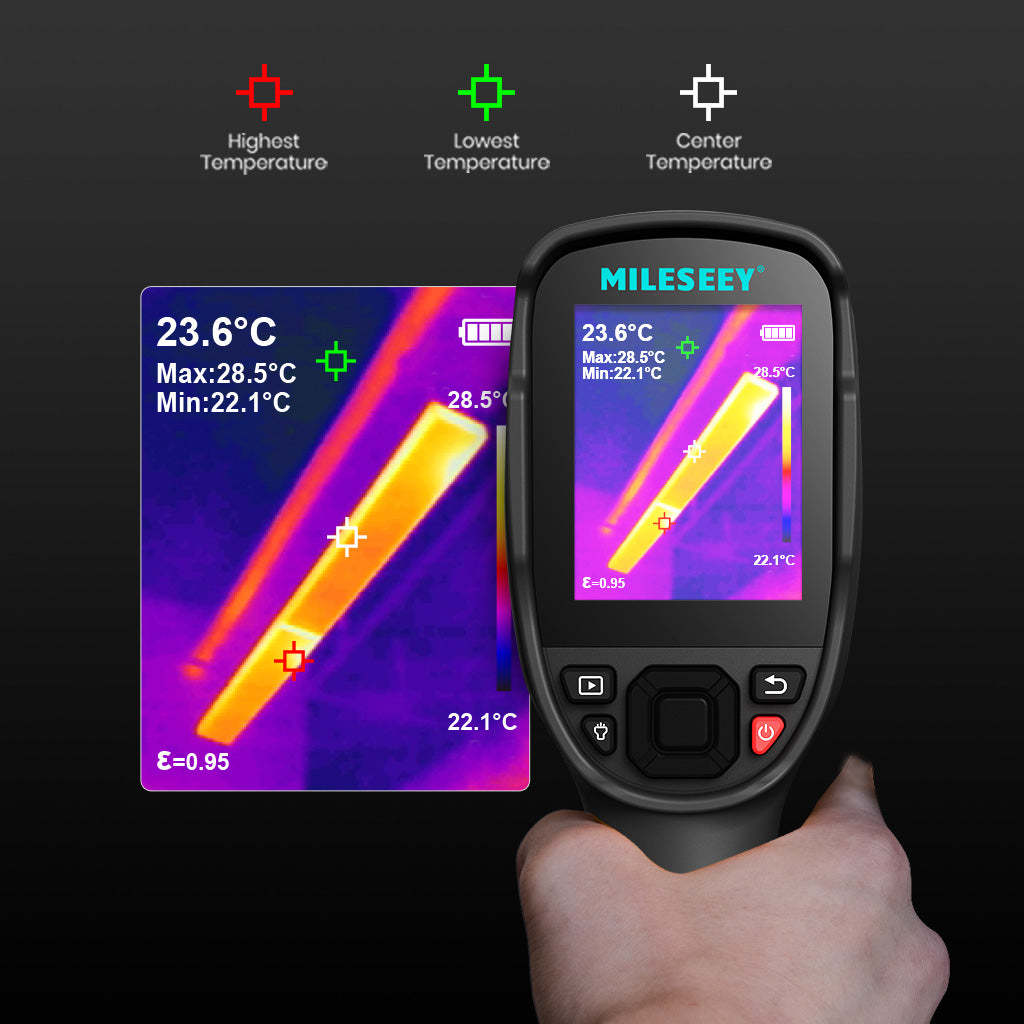

Auto Hot/Cold Spot Tracker
Quick scan and inspection warning
for hot/cold temperature

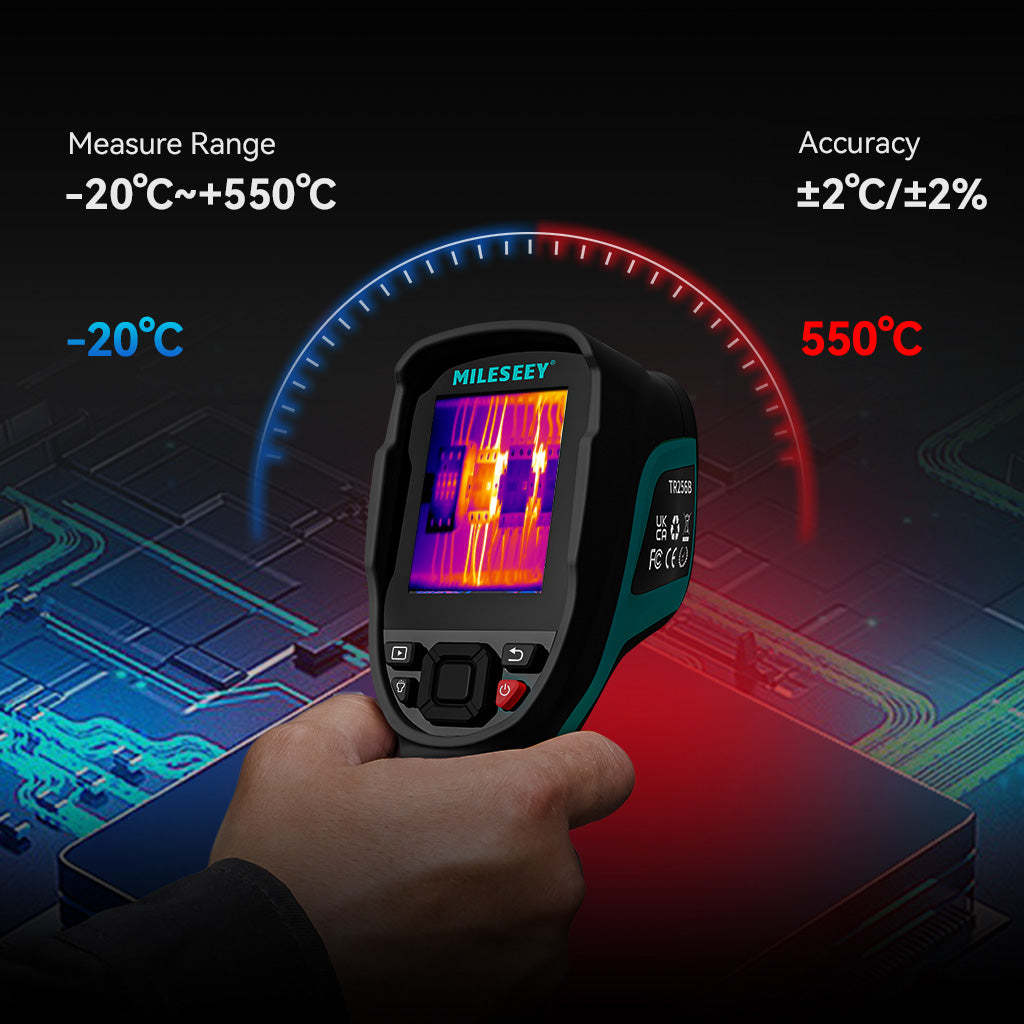

Wide temperature range
The thermal infrared camera can
measure from -20℃ to 550℃ (TR256B)
or 350℃ (TR256E)
Big memory with SD card
Rechargeable Lithium Battery

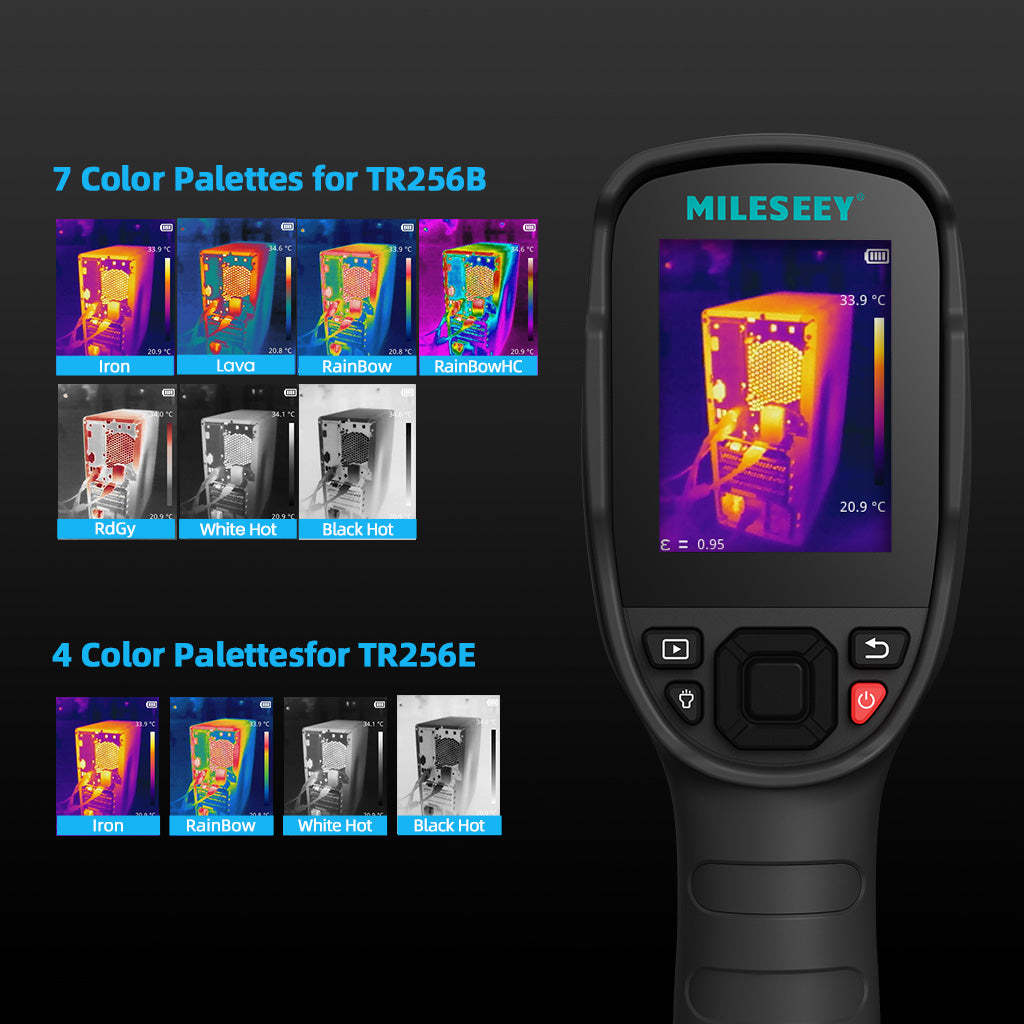

7 Colors Palettes |
Adjustable Emisivity
Warning for hot/cold temperature,
7 color palettes for TR256B
(4 color palettes for TR256E)
- High Resolution Rainbow,
Hot Red,
Lava, Rainbow, Iron Red,
White Heat, Block Heat, Red Gray
for clearer view and easier analysis
2.8 inch Color LCD |
High Display Resolution
The infrared thermometer camera
With wide field view of 56x42°
displays resolution 320*240 and the
visible light resolution 640*480,
delivers super high-resolution thermal imaging
Powerful and Smart
Mileseey TR256B/E thermal imaging camera
can display quality thermal image,
measure wide range of temperature,
alert for high and low temperature,
take thermal picture for the objective,
and make analysis with the professional App.
Professional and Eifficent

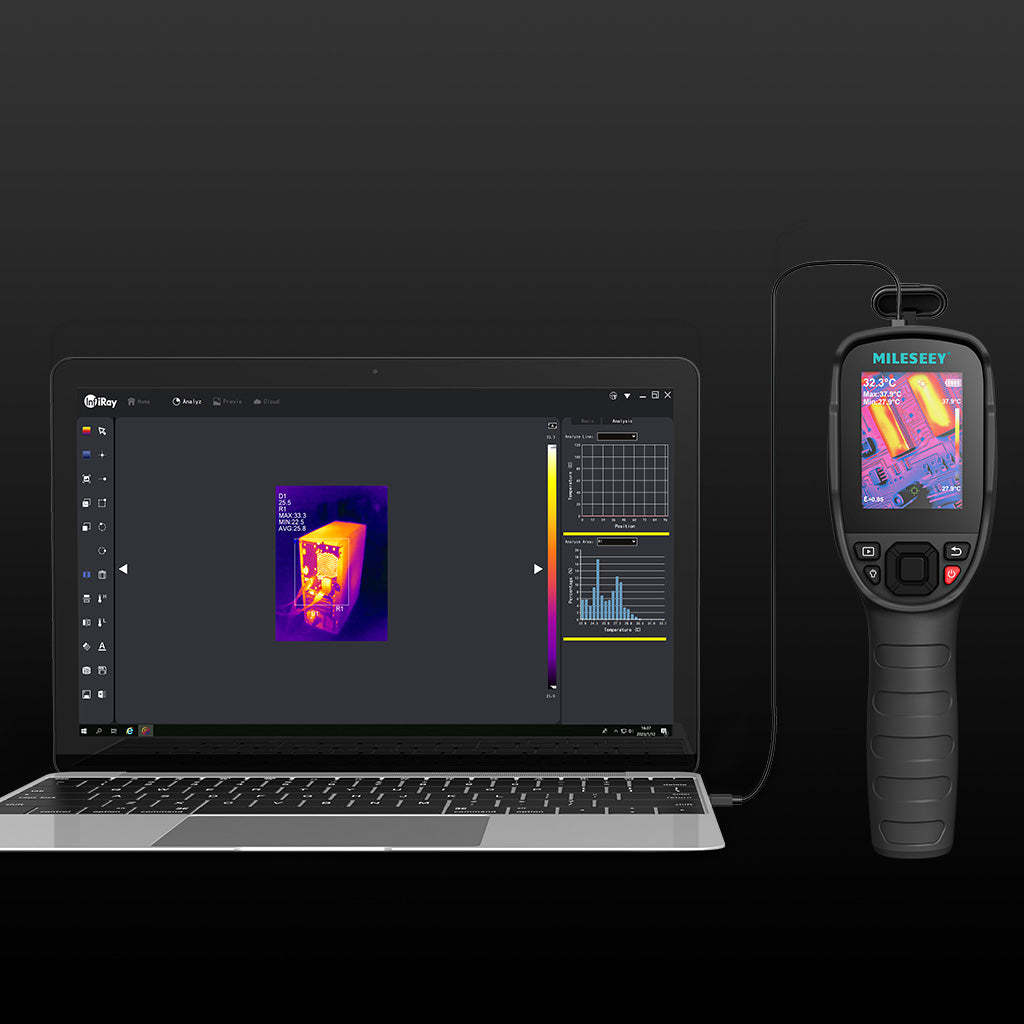

PC Software Analysis
Enable to have thermal images easily
and conveniently in computer with
thermal imager and analyze the pictures
with computer software
Specification

infrated or visiable light scanning

ideal color to scale the job

safe operation with warning of hot/cold temperature

from-20℃ to 450℃
-
Model
TR256B/TR256E
-
Temperature Range
-20℃ ~ 550℃ (350℃ for TR256E)
-
Thermal Resolution
256*192
-
Accuracy
±3℃
-
Visiable Light Resolution
640*480
-
Thermal Sensitivity
≤40mK
-
Screen Size//Color Palattes
2.8 inch/7 Color Palattes(4 colors for TR256E)
-
Frame Rate
<50 Hz
-
Field of view
56°
-
Infrared Spectral Band
12um
-
Hot/Cold Spot Alarm
√
-
optional function for TR256B only
Visable light camera, infared and visible light fusion
-
Data Storage
micro SD card
-
Battery Type
rechargeable lithium battery,5000ma,3.7V
-
Continious Working hours
11 hours
-
IP grade
IP65
-
Dimension
238*95*85mm
-
Weight
540g
