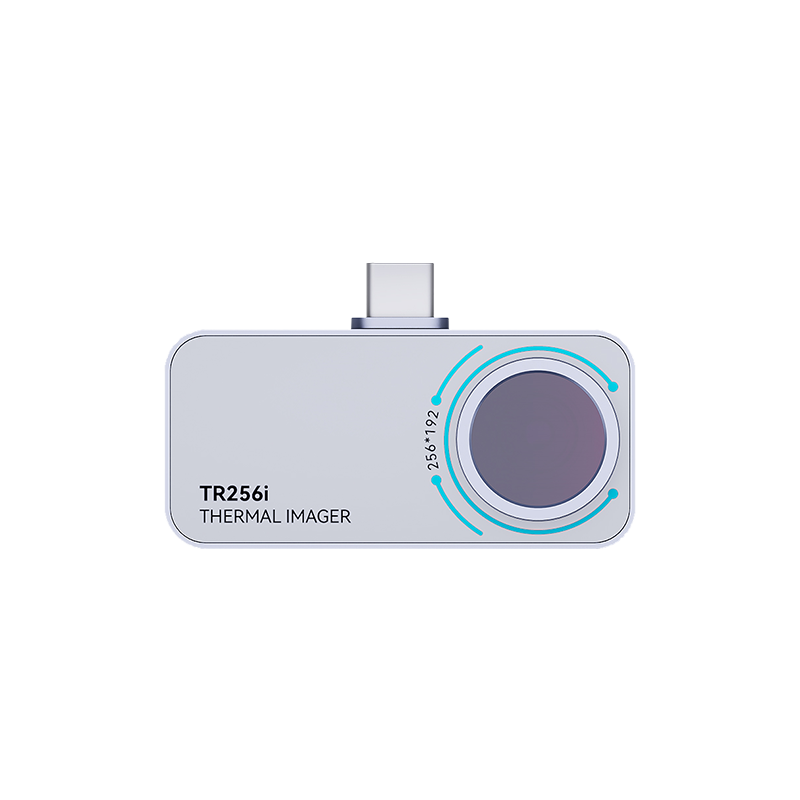

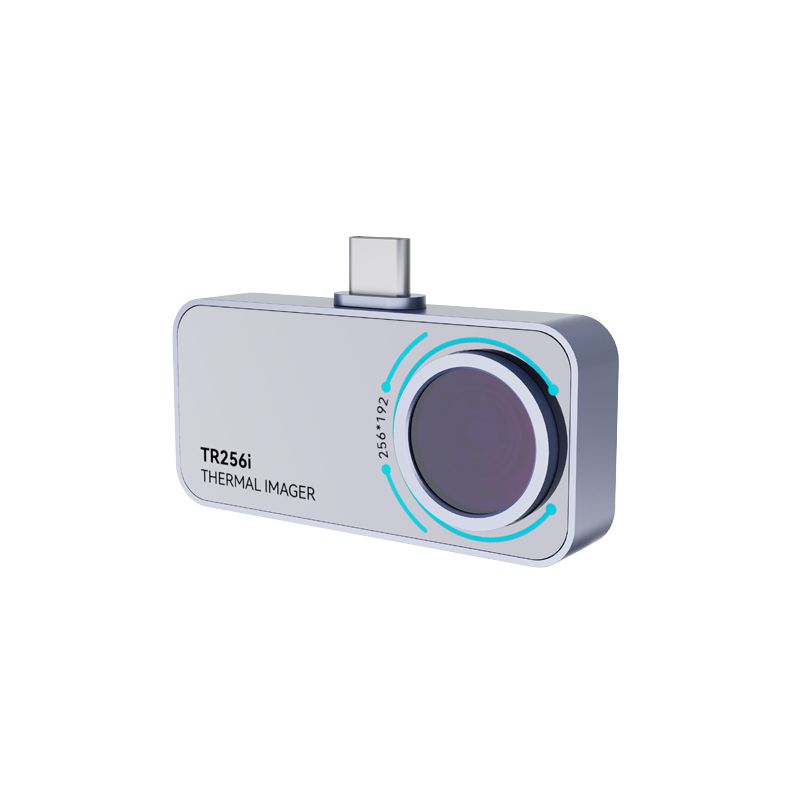

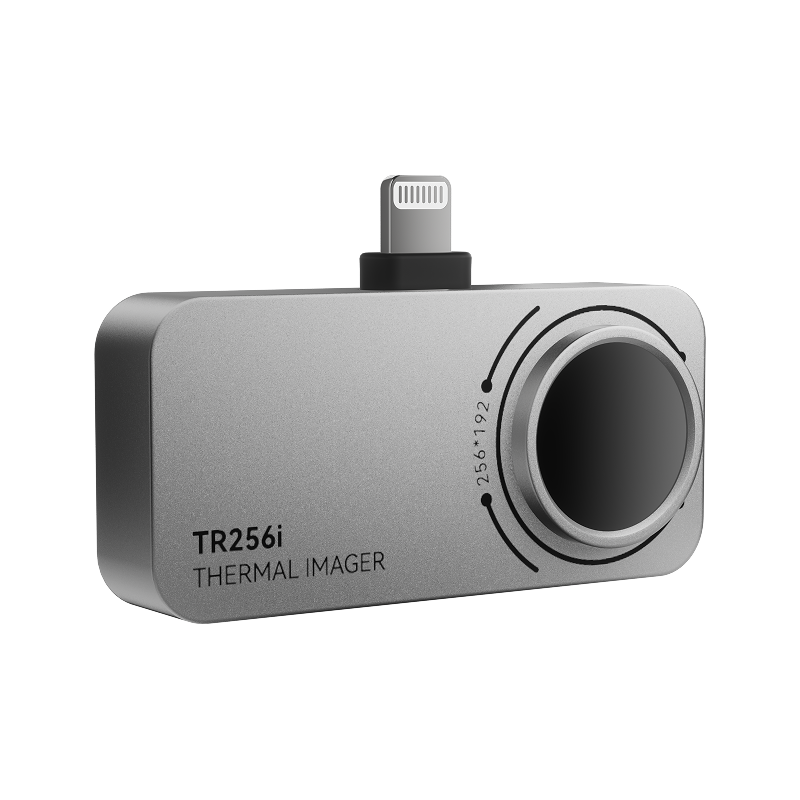

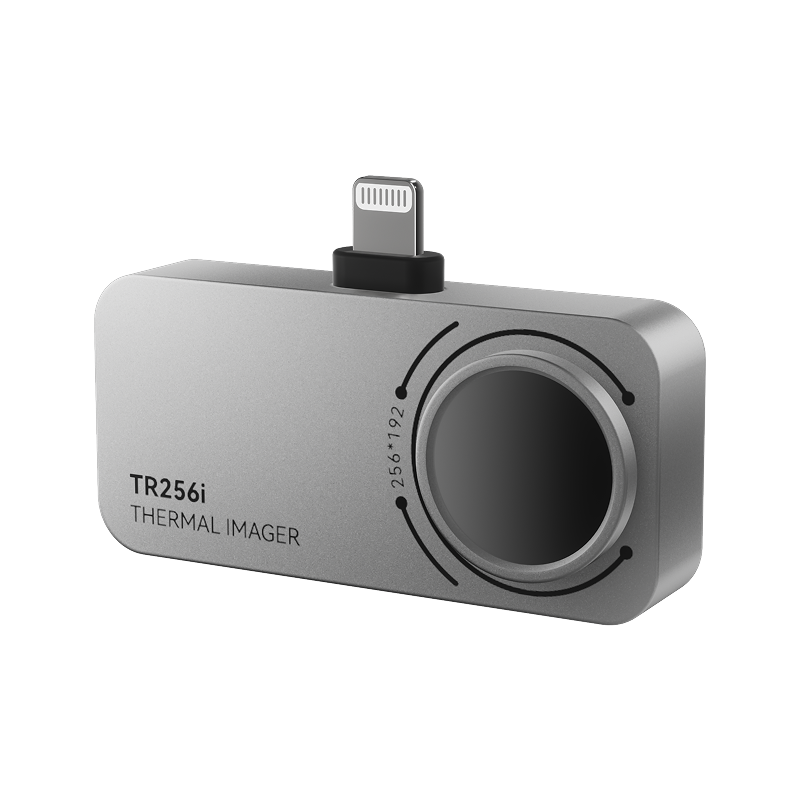

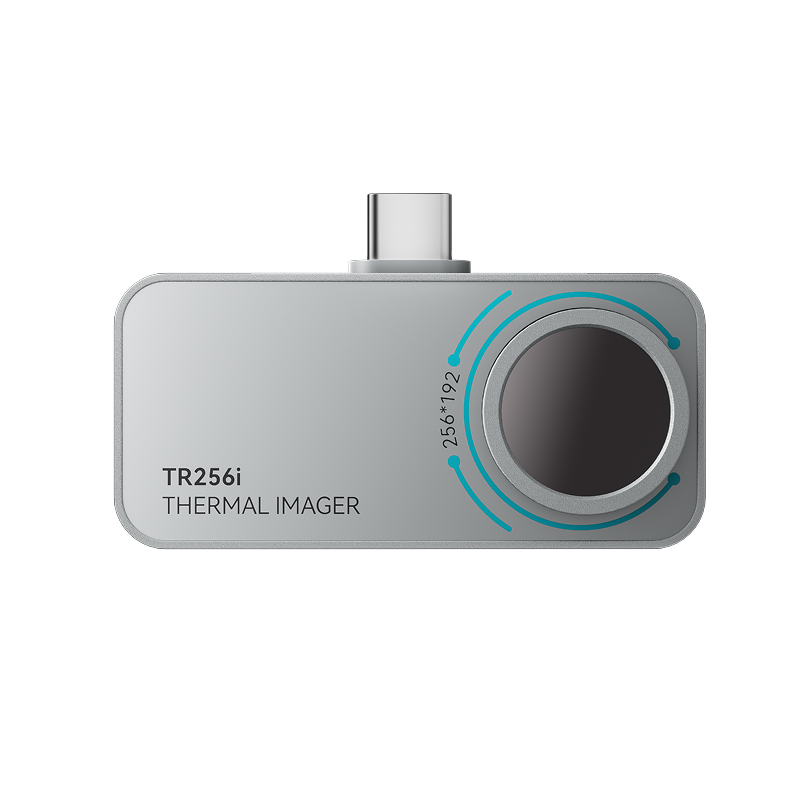

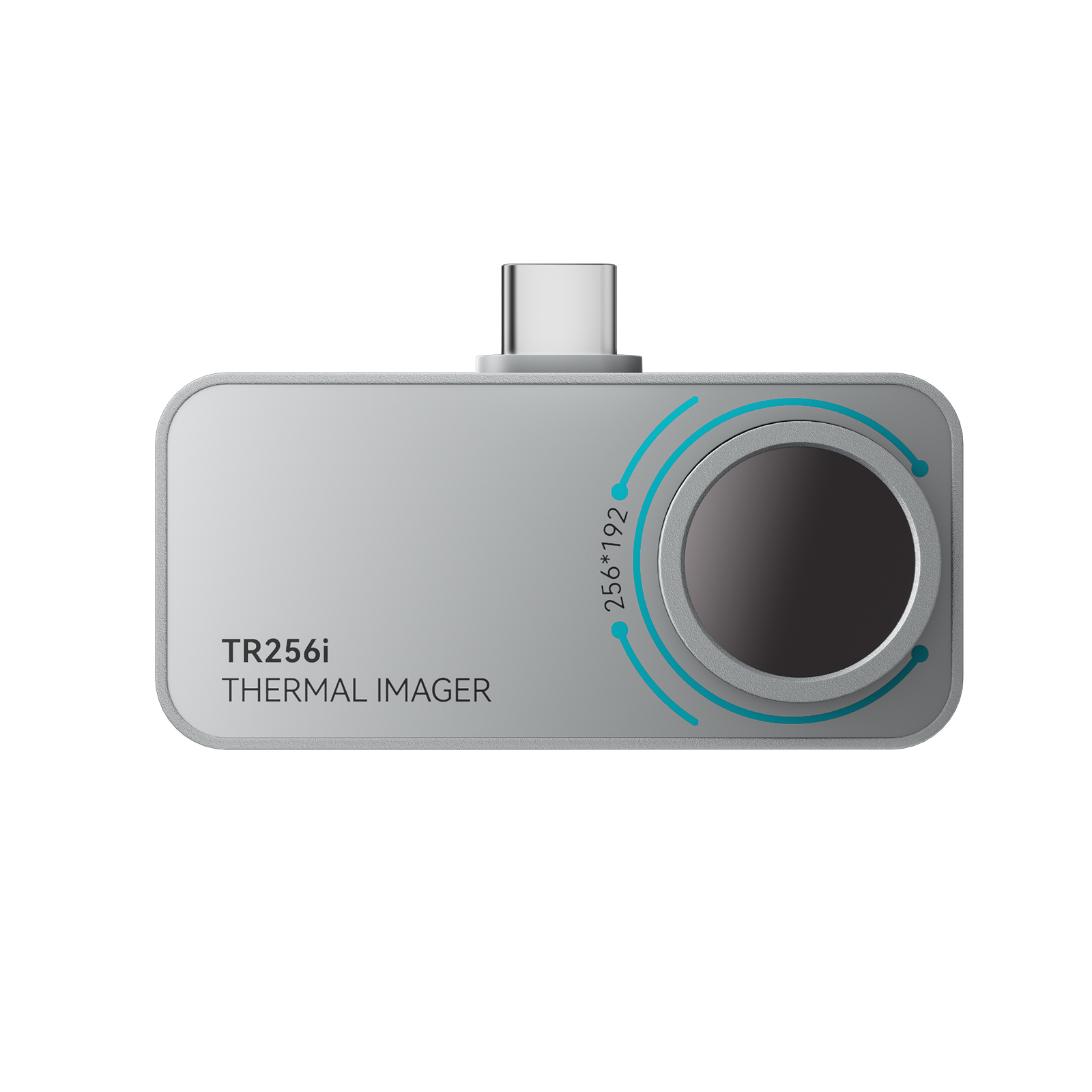

TR256i TR160i Mini Thermal Imaging Camera for Andriod Smartphones
- mini thermal imaging camera as mobile phone accessary with Connector
- compact, portable, smart and powerful...
2 in 1 function
Hot Spot Alert
6 Color Palattes
Wide Temperature Range
Awards For Mileseey
TR256i(camera only)

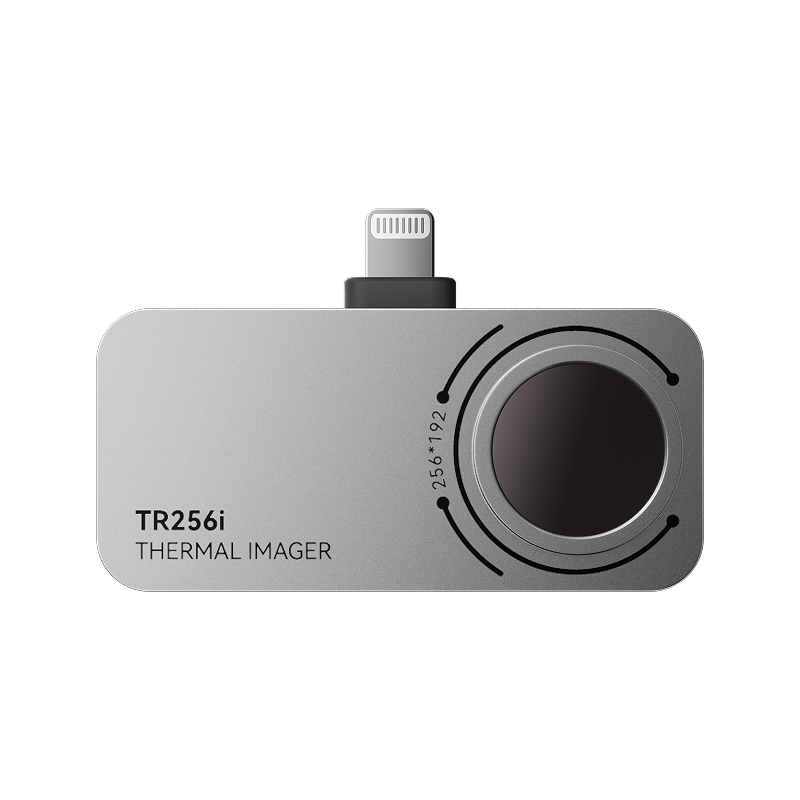

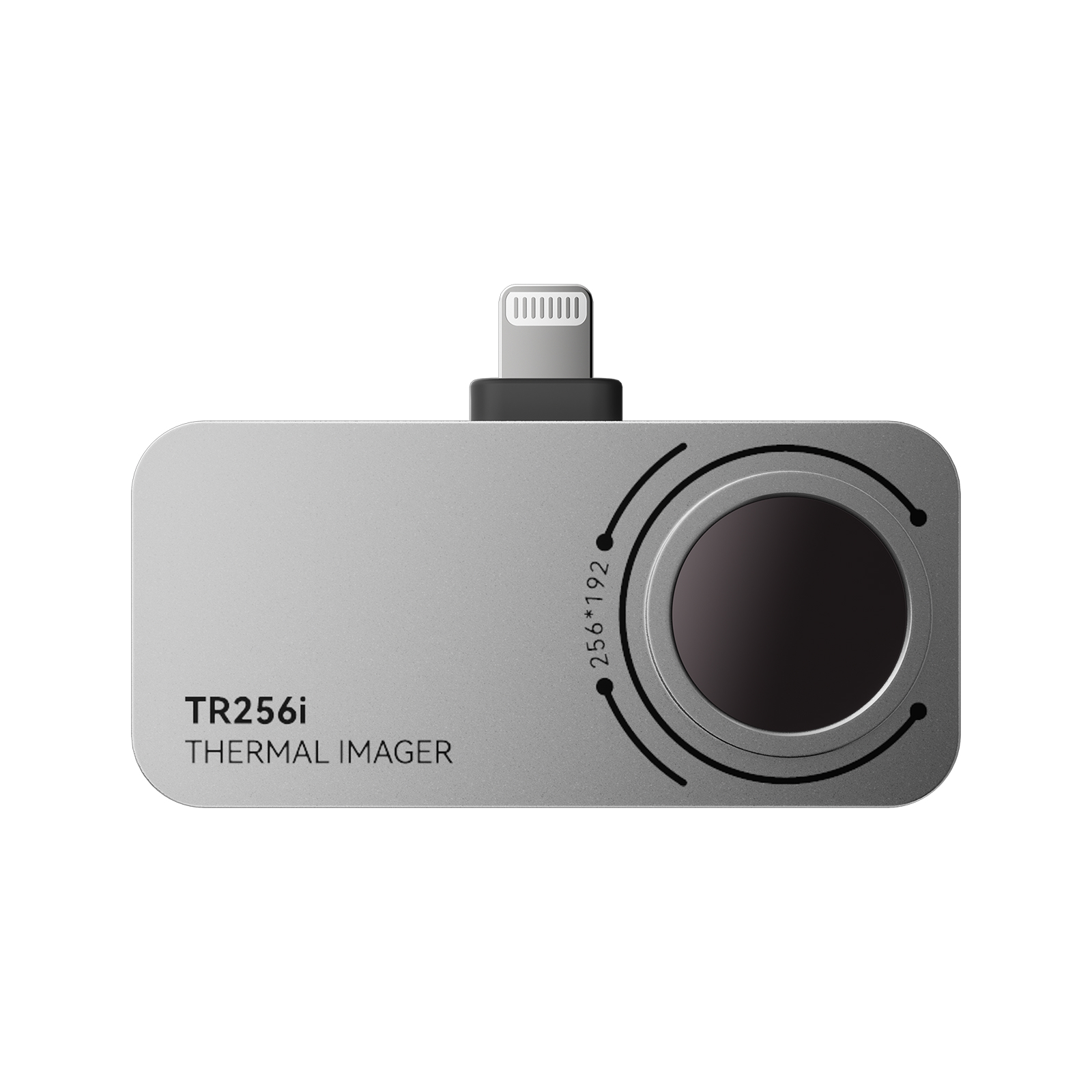

Thermal Imaging Camera
Compact, Portable, Smart, Powerful Infrared Camera;
A mobile phone accessary with Connector;

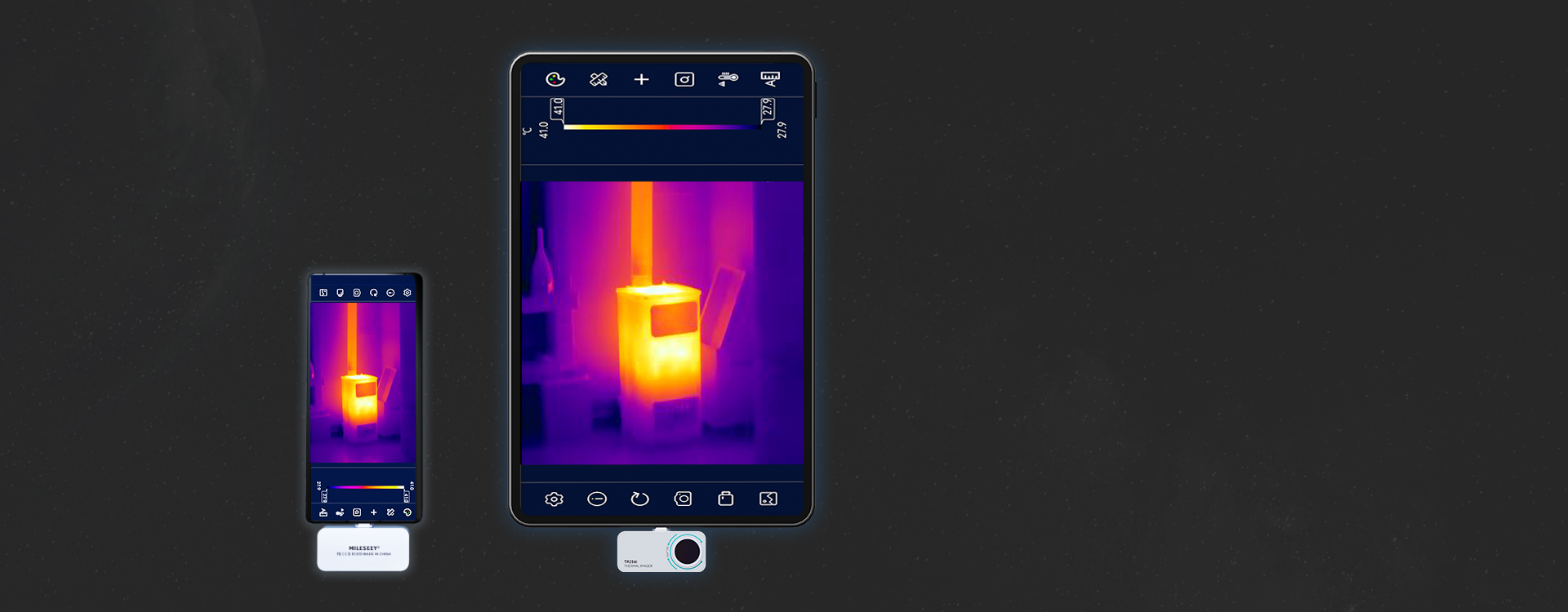

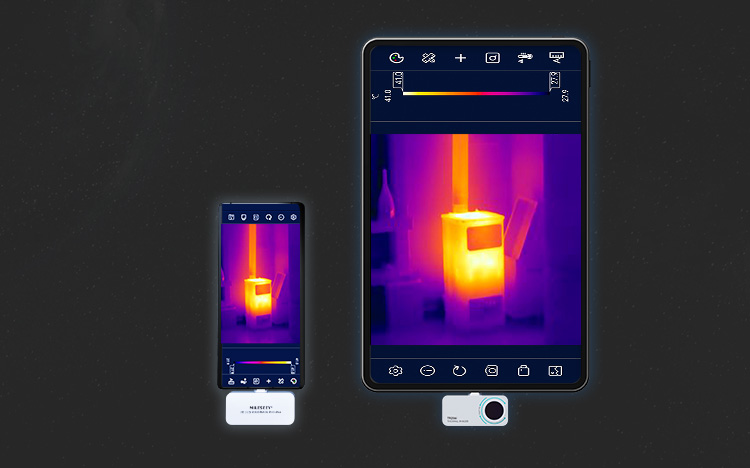

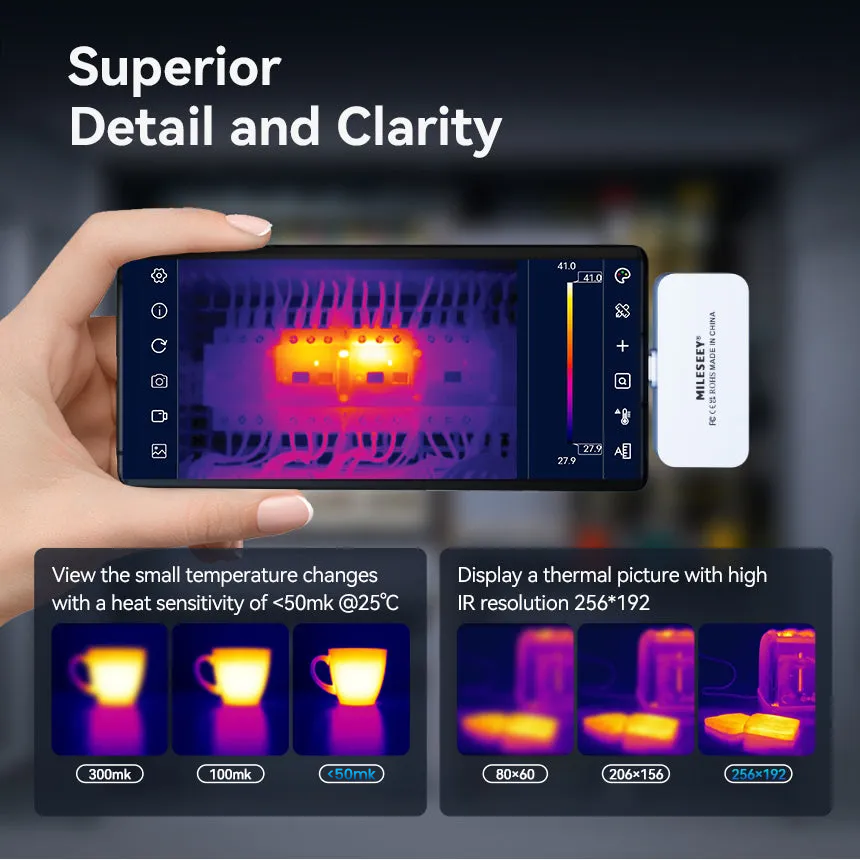

Display a thermal picture with high resolution of
256*192 and heat sensitivity < 50mk;
Have wide-field view from the screen of phone or tablet.
6 Colors Palettes
Adjustable Emisivity
High/Low Temperature Warning;

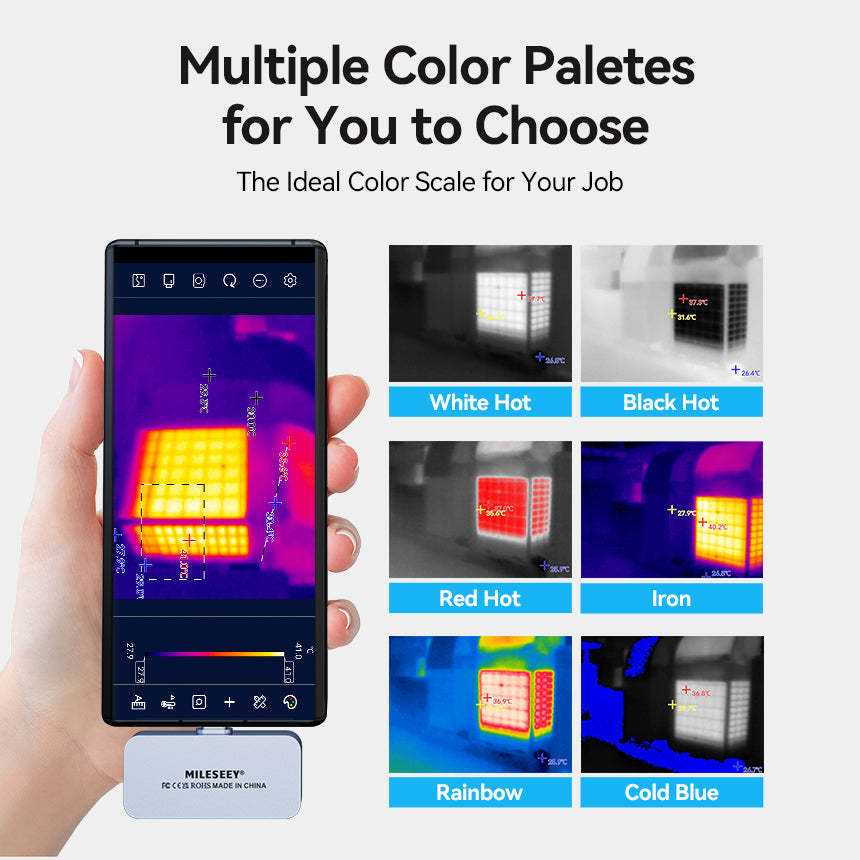

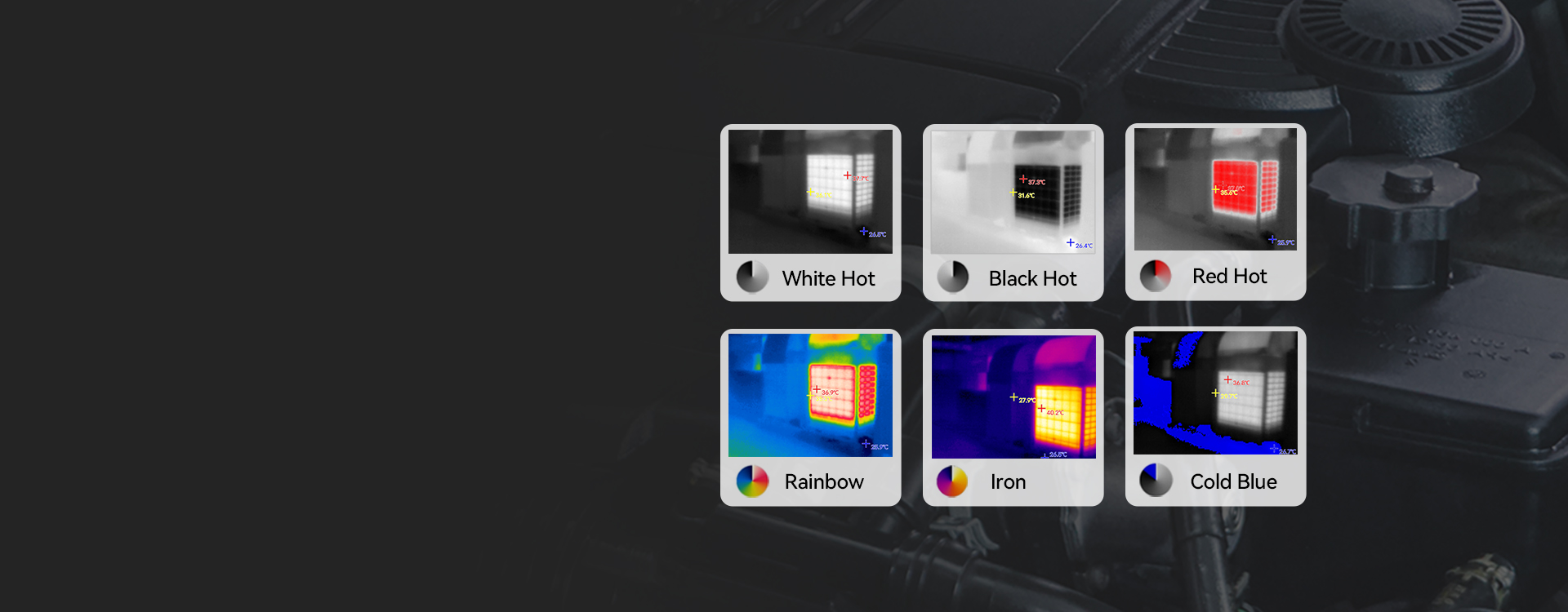

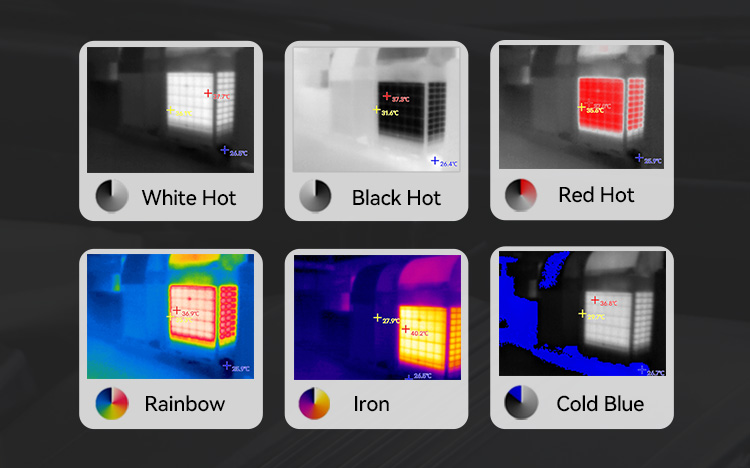

6 Color Palettes - High Resolution Rainbow, White Hot,
Black Hot, Red Hot, Rainbow, Iron and Cold Blue,
for Clearer Vision and easier Thermal Tracking

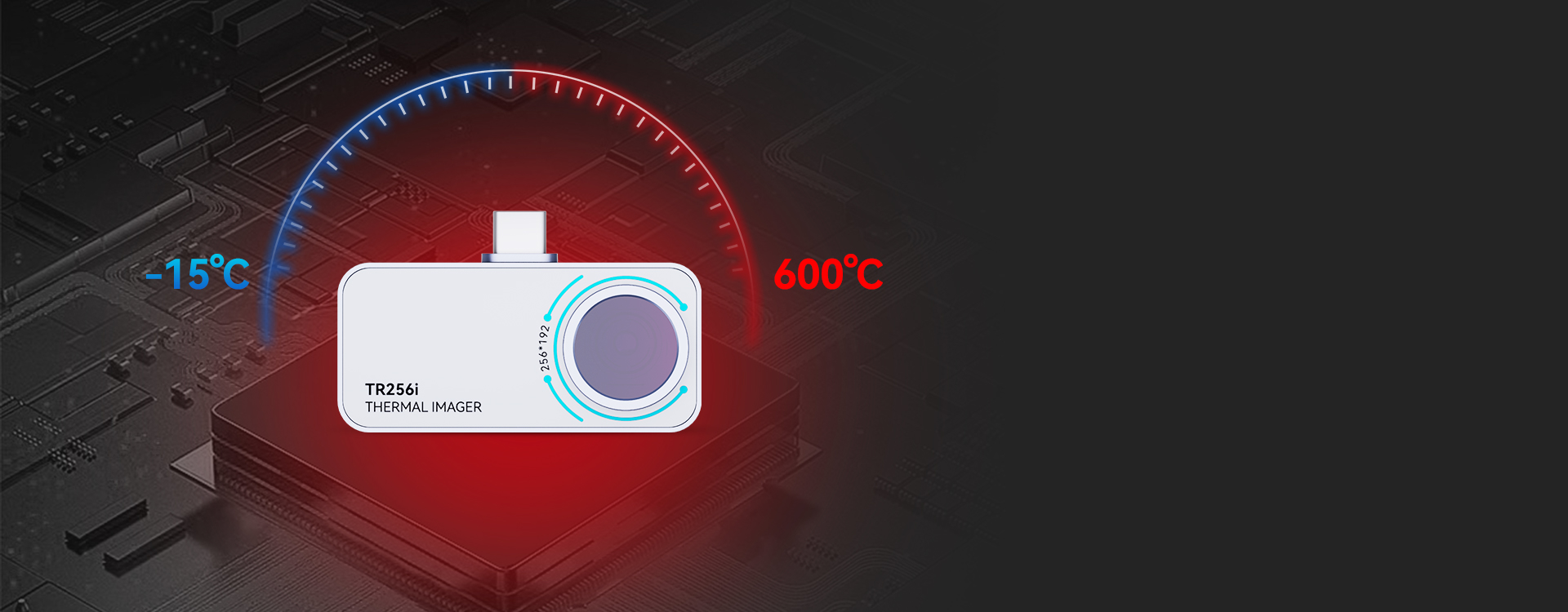

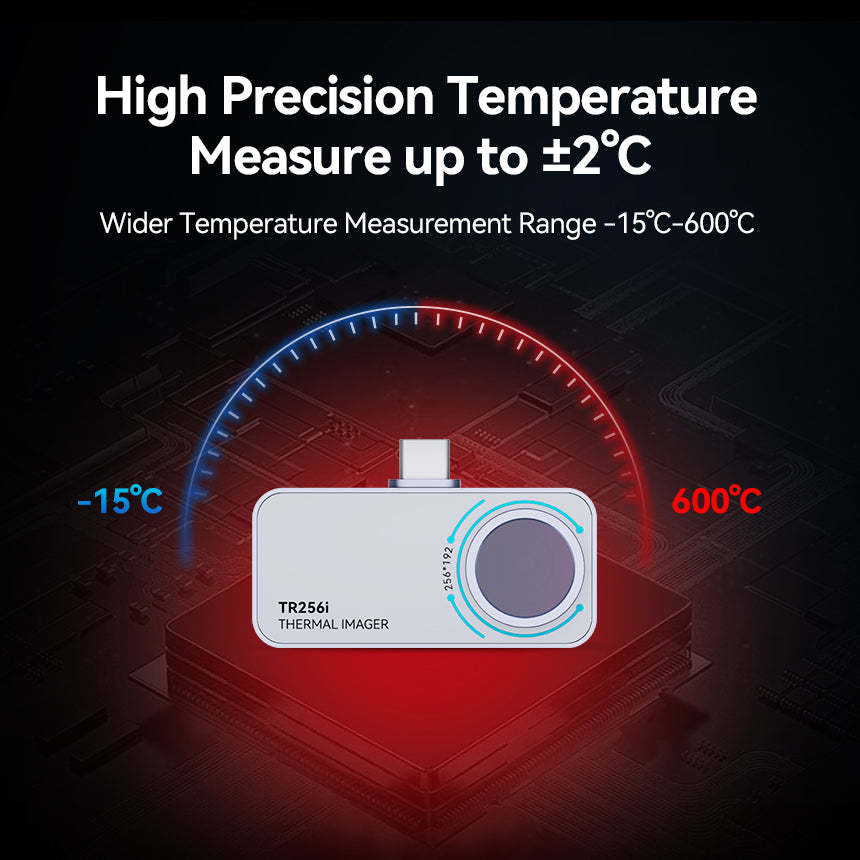

Accurate Temperature
High precision temperature measure up to ±2℃.

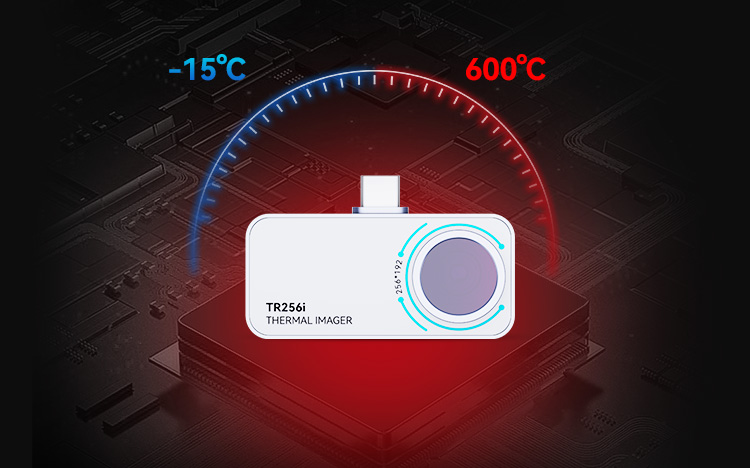

Wide range of temperature measurement
from -15℃ to 600℃.

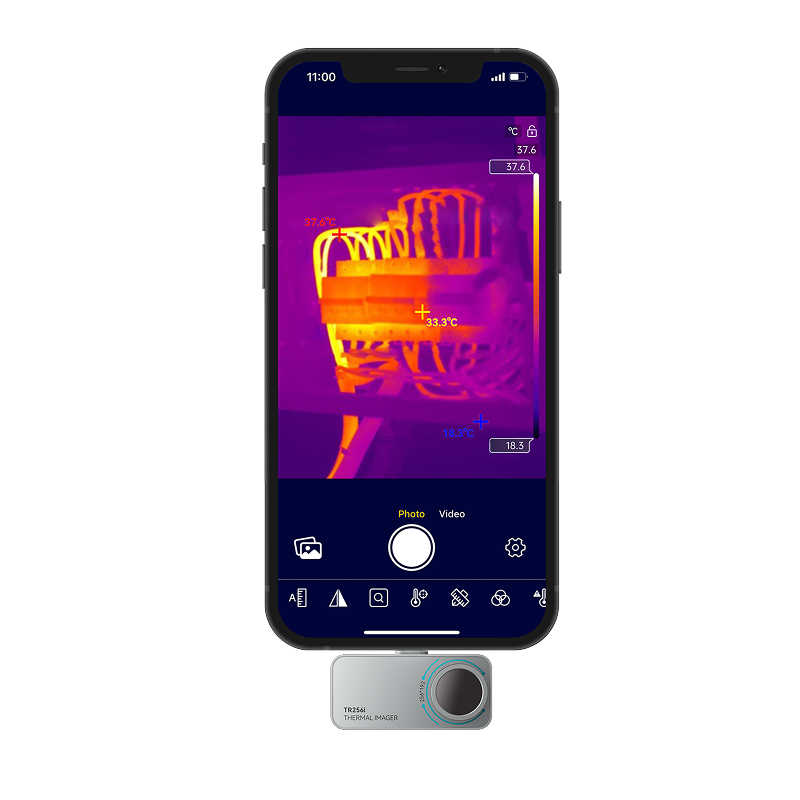

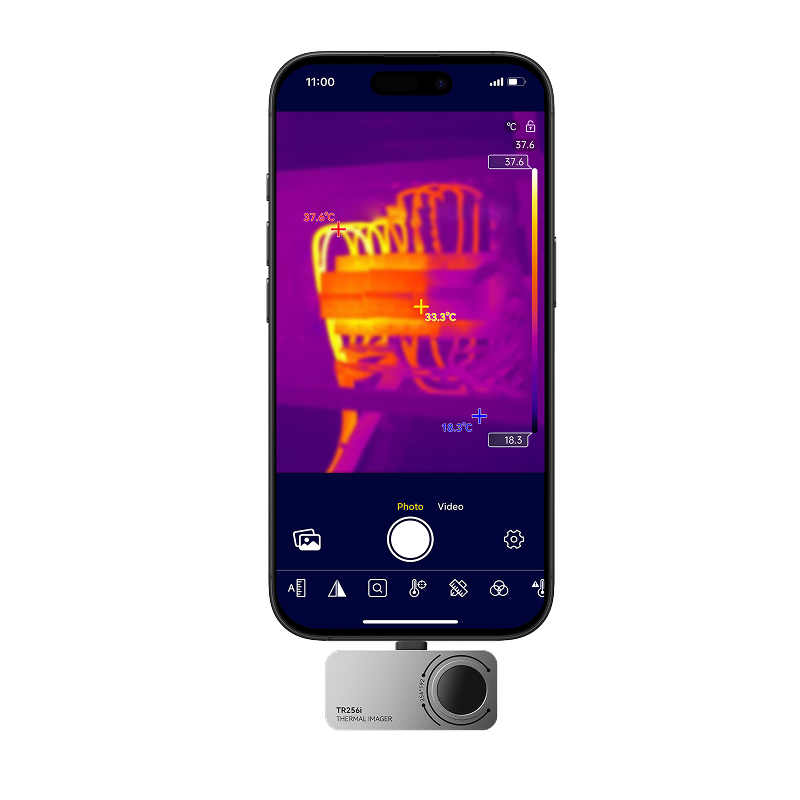

Powerful and Smart
Mileseey TR256i thermal imaging camera can
display quality thermal image,
measure wide range of temperature,
alert for high and low temperature,
take thermal picture for the objective,
and make analysis with the professional App.

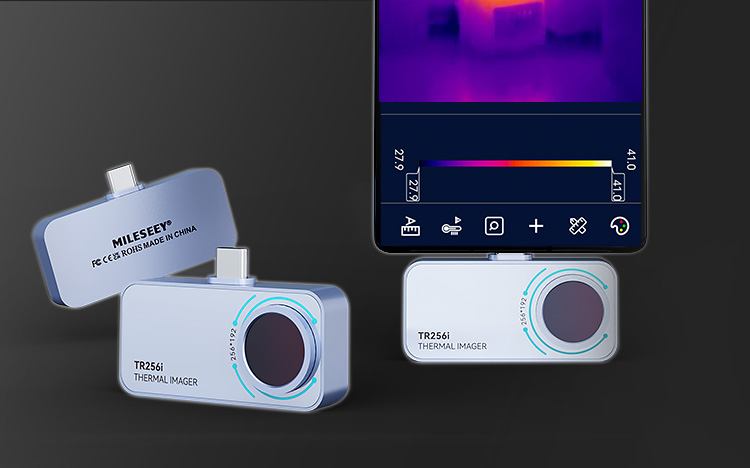

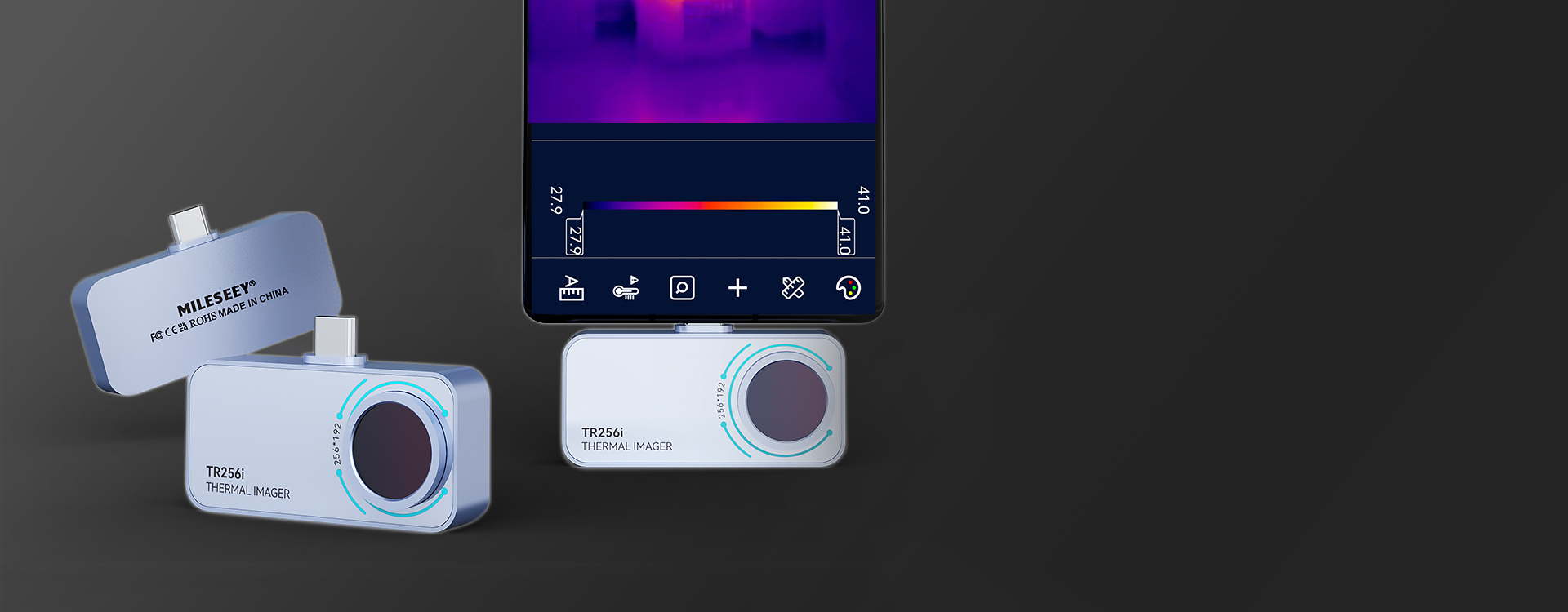

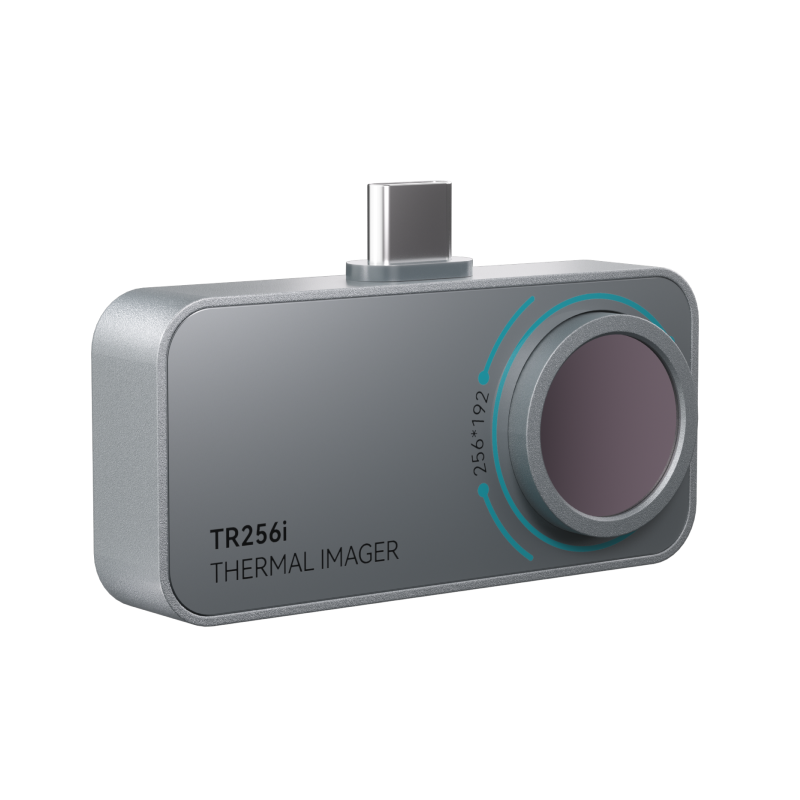

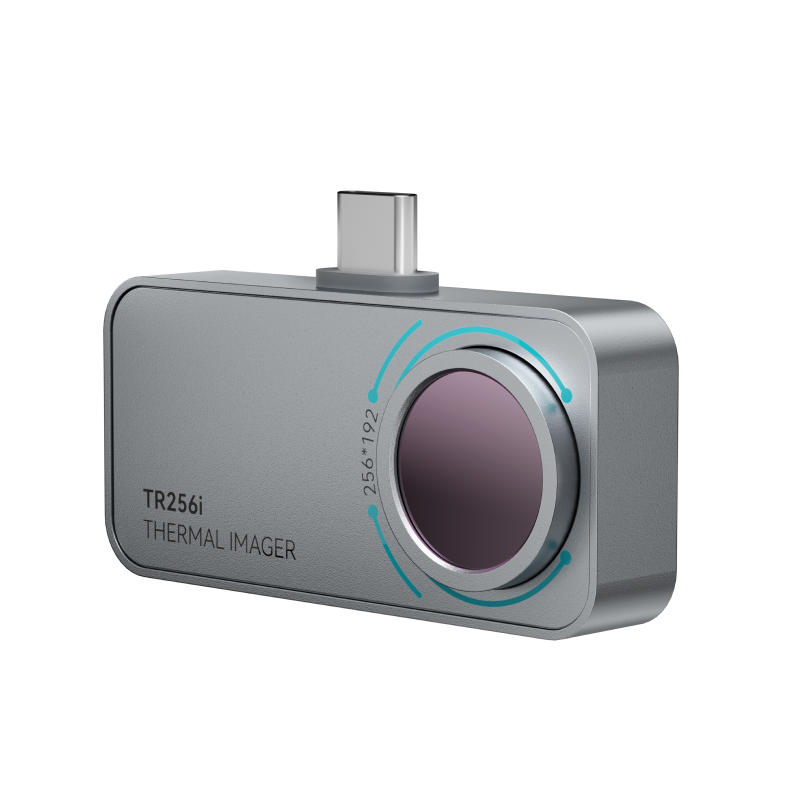

Compact and Portable
The Mileseey TR256i thermal imaging camera is
a small and compact camera as a cell phone accessory,
highly portable for thermal scanning anywhere, anytime.

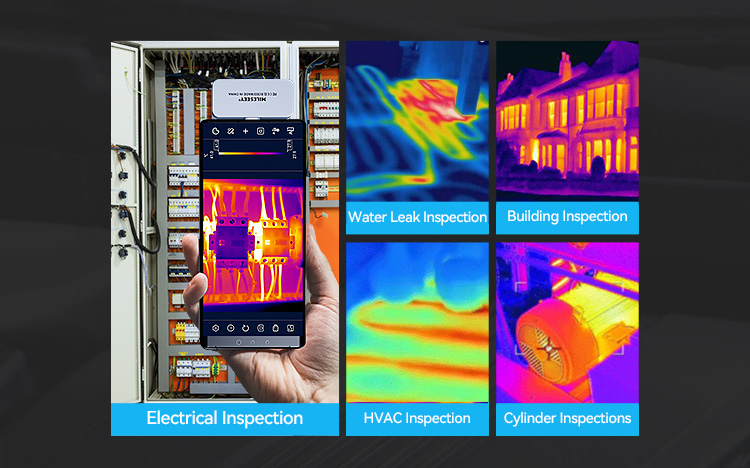

Wide Applications

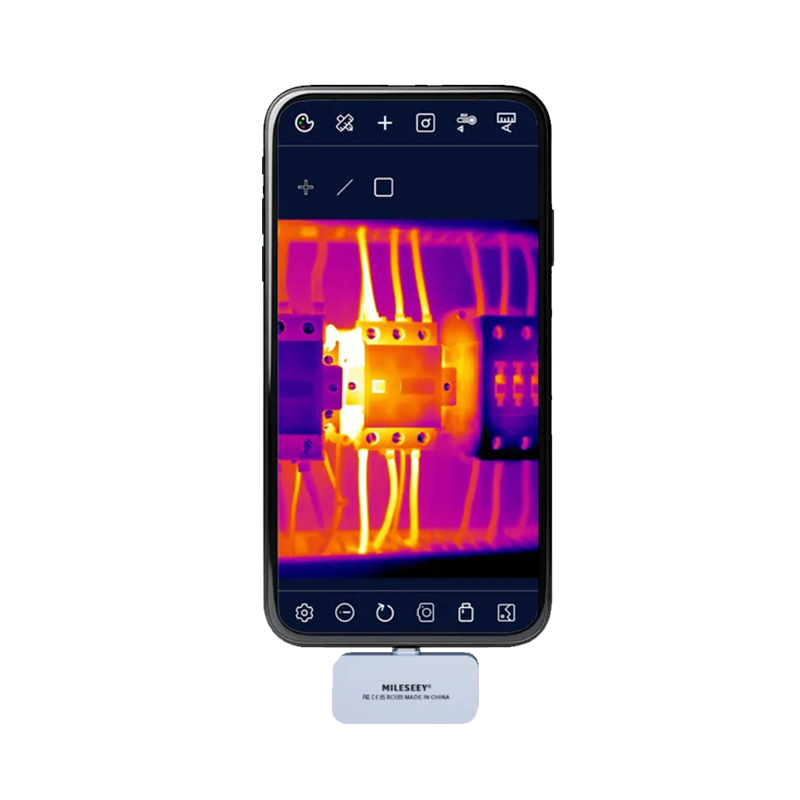

The Mileseey TR256i thermal imaging camera can be
used to find Hidden Electrical Problems, Energy Loss,
Water Damage and other heat-related issues.
Specification
-
Model
TR256i | TR160i
-
Temperature Range
-15℃ ～ 600℃ (-5℉～1112℉)
-
Thermal Resolution
256*192 for TR256i;160*120 for TR160i
-
Accuracy
±2℃
-
Visiable Light Resolution
640*480
-
Thermal Sensitivity
≤50mK @25℃
-
Screen Size//Color Palattes
phone or tablet screen/6 Color Palattes
-
Frame Rate
<25 Hz
-
Field of view
56°x42°
-
Infrared Spectral Band
8-14um
-
Hot/Cold Spot Alarm
√
-
IP grade
IP54
-
Dimension
34*26*15mm
-
Weight
19g
Find The Right Thermal Imager For You
- Infrared Thermal Scanning
- 3.5 inch Display+Visable Light Camera
- Thermal resolution as 256*192 pix
- Field of view as 55 degree
- Temperature Range as -20℃ ～ 550℃ (4℉～1022℉)
- Hot/Cold Spot Alarm
- 6 Color Palattes
- Rechargeable, 5000mha
- optional for TR256C: laser measure+GPS positioning+wifi projection
- Infrared Thermal Scanning
- 3.5 inch Display+Visable Light Camera
- Thermal Resolution 120*90 pix
- Field of view as 50ﾟ*63.5ﾟ
- Temperature Range as -20℃ ～ 450℃ (4℉～842℉)
- Frame Rate <20 Hz
- Hot/Cold Spot Alarm
- 6 Color Palattes
- Rechargeable, 5000mha
- laser measure+GPS positioning+Wifi
- Infrared Thermal Scanning
- 2.4 inch Display
- Thermal Solution: 120*90pix
- Field of view as 50ﾟ*38ﾟ
- Temperature Range as -20℃ ～ 450℃ (4℉～752℉)
- Frame Rate <25 Hz
- Hot/Cold Spot Alarm
- 6 Color Palattes
- Rechargeable, 2600mha
- Visable Light Camera,laser measure, GPS and wifi
- Infrated Thermal Scanning
- Visable Light Camera
- 3.5 inch Display
- Field of view as 52.5*39.5
- Temperature Range as -20℃ ～ 550℃
- Frame Rate <20 Hz
- Hot/Cold Spot Alarm
- 4 Color Palattes
- Rechargeable
- Infrated Thermal Scanning
- HD display with phone or tablet
- Thermal resolution as 256*192 pix
- Field of view as 54 degree
- Temperature Range as -15℃ ～ 600℃ (5℉～1112℉)
- Hot/Cold Spot Alarm
- 6 Color Palattes
- mobile accessory
- rechargeable
- Infrared Thermal Scanning with PC software analysis
- 2.8 inch Display+Visable Light Camera
- Thermal resolution as 256*192 pix
- Field of view as 56 degree
- Temperature Range as -20℃ ～ 550℃ (350℃ for TR256E)
- Hot/Cold Spot Alarm
- 7 Color Palattes (4 colors for TR256E)
- Rechargeable, 5000mha
- optional for TR256B ONLY: Visable Light Camera, Infared and visiable light fusion
