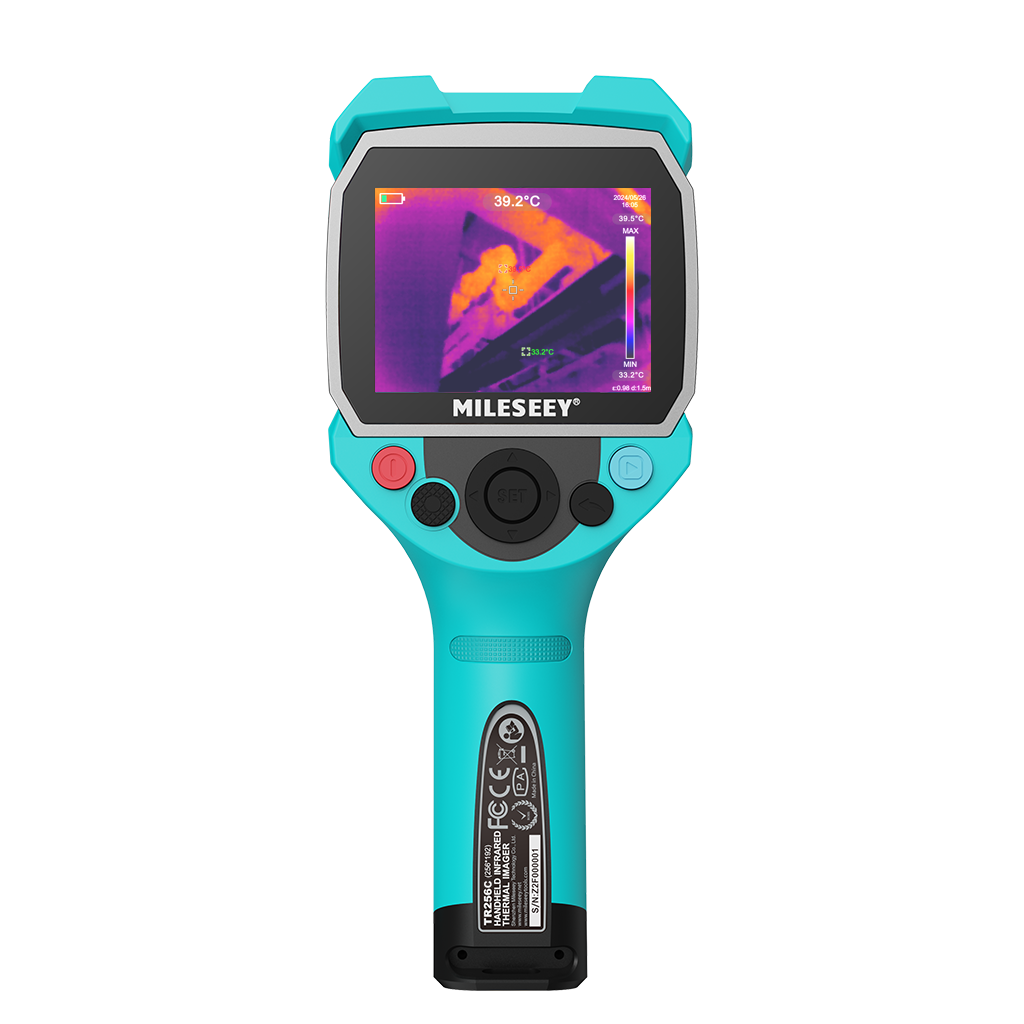

Mileseey TR120 Infrared Thermal Imager with Visible Light Camera Temperature Range from -20°C~450°C
2
sold in last
8
hours
452In stock
TR120
2 in 1 function
Hot Spot Alert
6 Color Palattes
Wide Temperature Range
$309.99
$599.00
customers are viewing this product
Free Shipping
for light and economy package
Brand Authenticity
100% genuine products
Easy Return
online service
Awards For Mileseey
2020 Good Design Award
2021 IF Design Award
2021 Reddot Award
Handheld Dual-camera
Infrared Thermal Imager
Anti-interference
All-weather condition
Object recognition efficiently

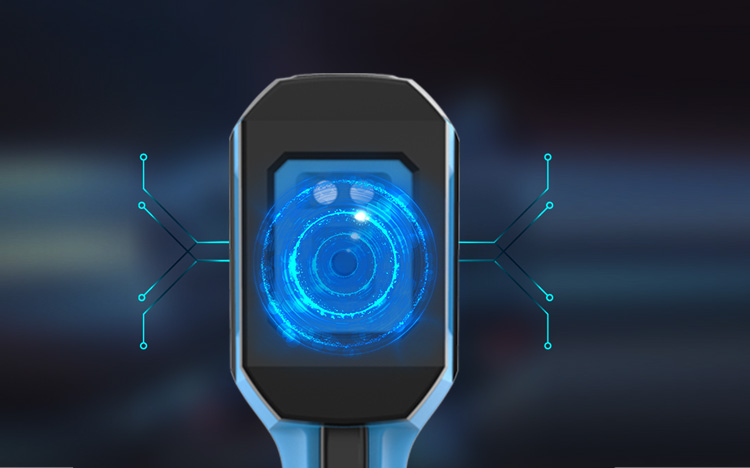

Visible Light Camera
Mileseey TR120 infrared thermal scanner
is designed with infrared, visible light and
an automatic hot/cold spot tracker,
providing people with Visible Light Camera
6 Colors Palettes |
Adjustable Emisivity
Warning for hot/cold temperature,

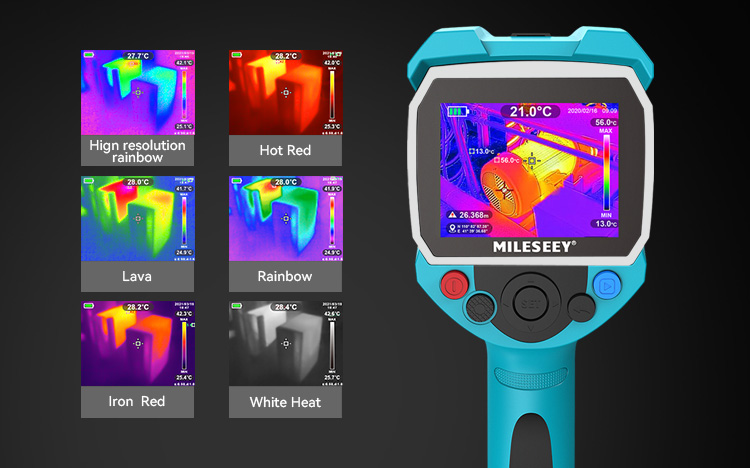

6 color palettes - High Resolution Rainbow,
Hot Red, Lava, Rainbow, Iron Red, White Heat
for clearer view and easier analysis.

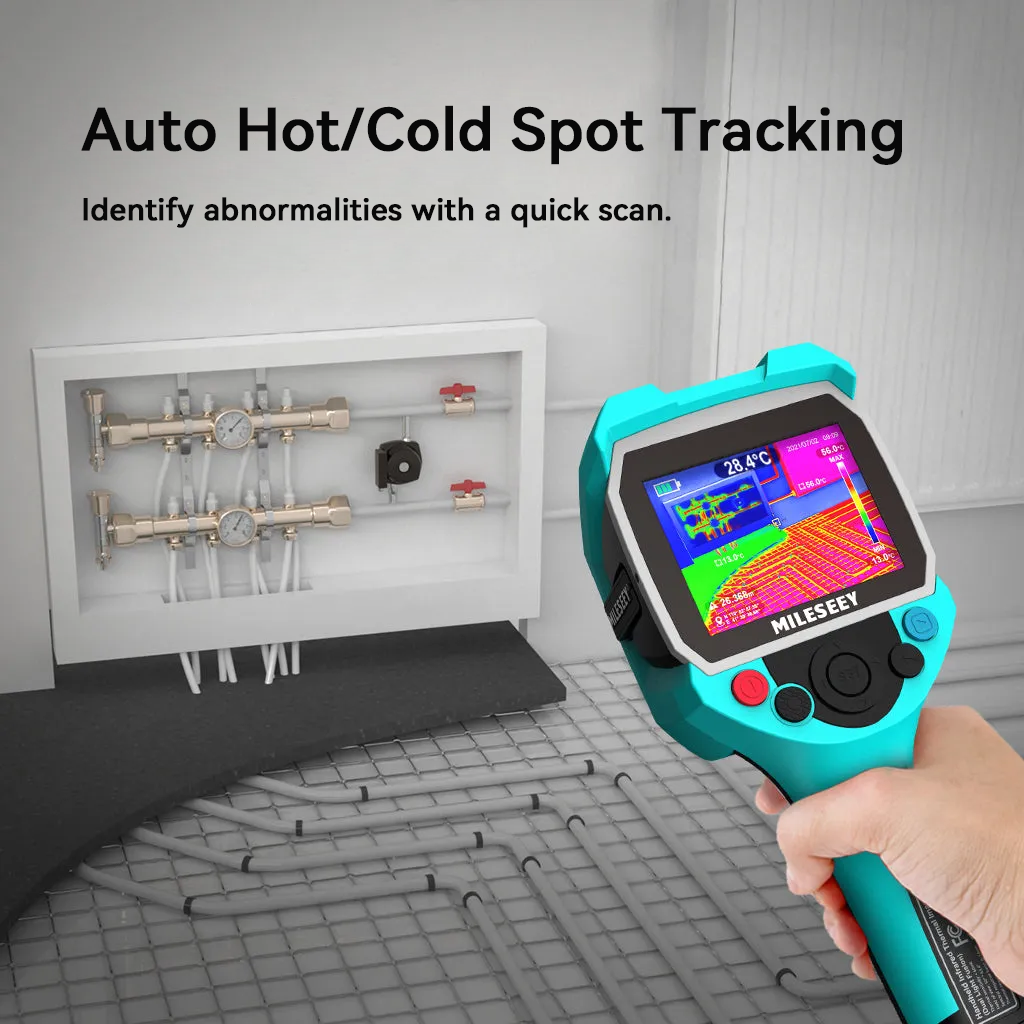

Auto Hot/Cold Spot Tracker
Quick scan and inspection warning
for hot/cold temperature
Wide temperature range
The thermal infrared camera can
measure from-20℃ to 450℃ (4℉～842℉)
Big memory with 2000 pictures
Rechargeable Lithium Battery

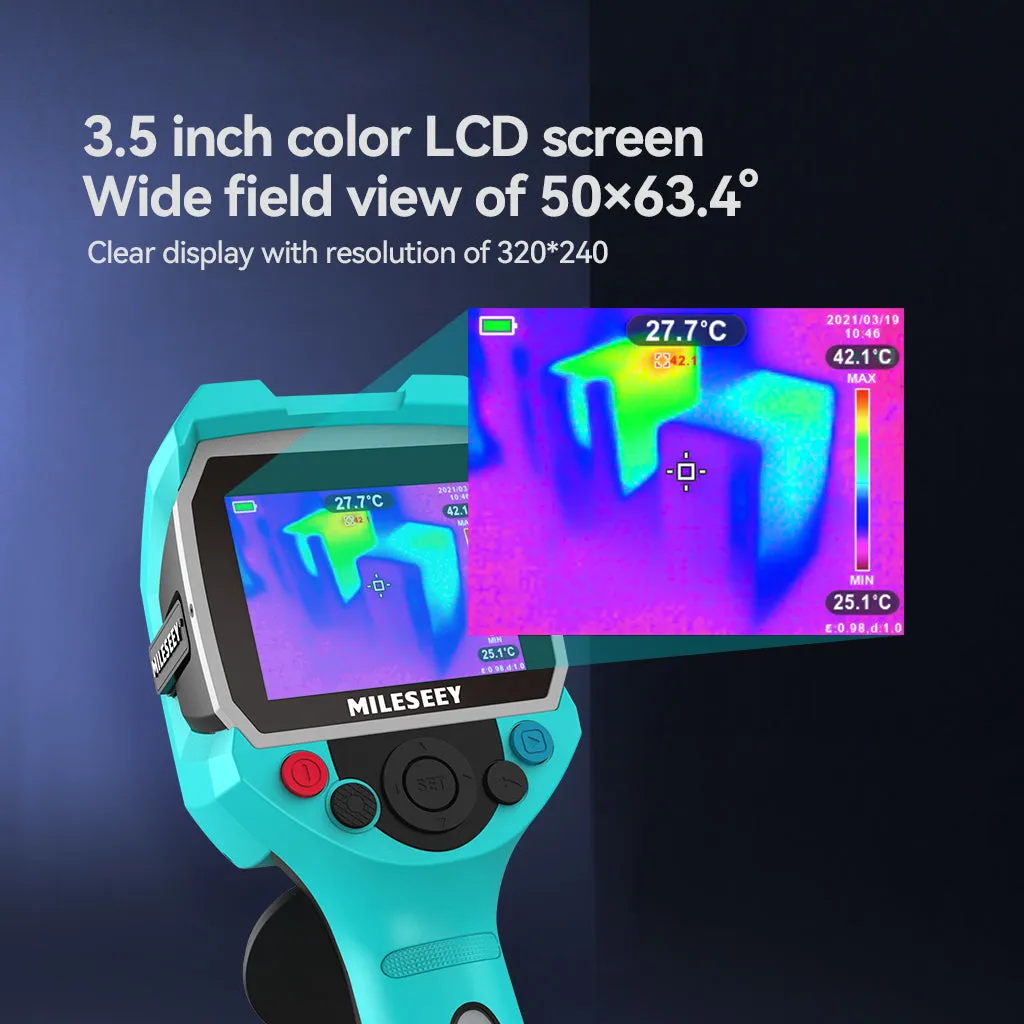

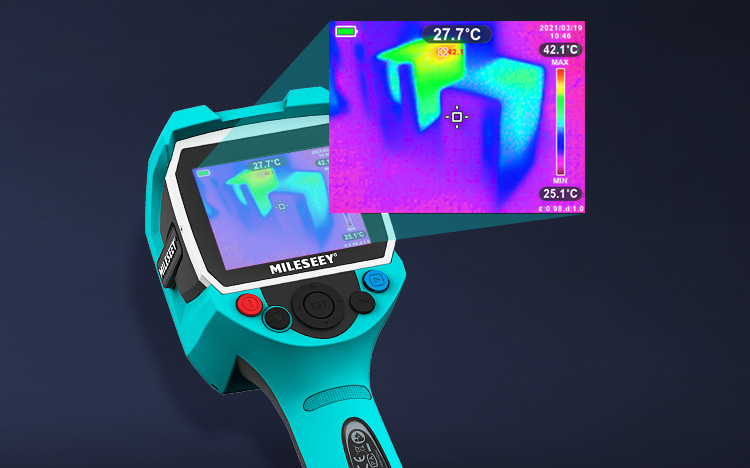

3.5 inch Color LCD |
High Display Resolution
The infrared thermometer camera TR120
With wide field view of 50x63.4°
displays resolution 320*240 and the
visible light resolution 640*480,
delivers super high-resolution thermal imaging
Specification
2 in 1 Functions
infrated or visiable light scanning
6 Color Palattes
ideal color to scale the job
High Temperature Alert
safe operation with warning of hot/cold temperature
Wide Temperature Range
from-20℃ to 450℃
-
Model
TR120
-
Temperature Range
-20℃ ～ 450℃ (4℉～842℉)
-
Thermal Resolution
120*90
-
Accuracy
±3℃
-
Visiable Light Resolution
640*480
-
Thermal Sensitivity
≤60mK (0.15℃)
-
Screen Size
3.5 inch
-
Frame Rate
<20 Hz
-
Field of view
50ﾟ*63.5ﾟ
-
Infrared Spectral Band
8-14um
-
Hot/Cold Spot Alarm
√
-
Color Palattes
6 optional colors
-
Memory
8G micro SD card
-
Battery Type
rechargeable lithium battery
-
Continious Working hours
11 hours
-
IP grade
IP65
-
Dimension
238*95*85mm
-
Weight
540g
Find The Thermal Imager For You
Mileseey TR256 Infrared Thermal Imager with Optional Visible Light Camera Laser Measure GPS Positioning WIFI Projection
$999.99
$399.99
Range : -20°C~550°C
HD display : 3.5inch
- Infrared Thermal Scanning
- 3.5 inch Display+Visable Light Camera
- Thermal resolution as 256*192 pix
- Field of view as 55 degree
- Temperature Range as -20℃ ～ 550℃ (4℉～1022℉)
- Hot/Cold Spot Alarm
- 6 Color Palattes
- Rechargeable, 5000mha
- optional for TR256C: laser measure+GPS positioning+wifi projection
Mileseey TR120 Infrared Thermal Imager with Visible Light Camera Temperature Range from -20°C~450°C
$599.00
$309.99
Range : -20°C~450°C
HD display : 3.5inch
- Infrared Thermal Scanning
- 3.5 inch Display+Visable Light Camera
- Thermal Resolution 120*90 pix
- Field of view as 50ﾟ*63.5ﾟ
- Temperature Range as -20℃ ～ 450℃ (4℉～842℉)
- Frame Rate <20 Hz
- Hot/Cold Spot Alarm
- 6 Color Palattes
- Rechargeable, 5000mha
- laser measure+GPS positioning+Wifi
Range : -20°C~400°C
HD Dilspaly : 2.4 inch
- Infrared Thermal Scanning
- 2.4 inch Display
- Thermal Solution: 120*90pix
- Field of view as 50ﾟ*38ﾟ
- Temperature Range as -20℃ ～ 450℃ (4℉～752℉)
- Frame Rate <25 Hz
- Hot/Cold Spot Alarm
- 6 Color Palattes
- Rechargeable, 2600mha
- Visable Light Camera,laser measure, GPS and wifi
Range : 550m
Field of View : 14.5° x 11°
- Infrared Thermal Scanning
- Monocular Night Vision
- 4.5 inch Display(optional)
- Laser Rangefinder Moudle(optional)
- Infared Resolution of 256*192px
- Thermal Sensitivity <40MK
- Hot/Cold Spot Alarm
- 5 Color Palattes
- Rechargeable, 4500mha
Mileseey TR256i TR160i Compact Thermal Imaging Camera for Phone with High IR Resolution 256*192
$259.99
$159.99
Range : -15°C~600°C
HD display : match to phone or tablet
- Infrated Thermal Scanning
- HD display with phone or tablet
- Thermal resolution as 256*192 pix
- Field of view as 54 degree
- Temperature Range as -15℃ ～ 600℃ (5℉～1112℉)
- Hot/Cold Spot Alarm
- 6 Color Palattes
- mobile accessory
- rechargeable
Mileseey TR256B/E Infrared Thermal Imager with PC Software Analysis and Optional Visible Light Camera
$539.99
$239.99
Range : -20°C~550°C
HD display : 2.8inch
- Infrared Thermal Scanning with PC software analysis
- 2.8 inch Display+Visable Light Camera
- Thermal resolution as 256*192 pix
- Field of view as 56 degree
- Temperature Range as -20℃ ～ 550℃ (350℃ for TR256E)
- Hot/Cold Spot Alarm
- 7 Color Palattes (4 colors for TR256E)
- Rechargeable, 5000mha
- optional for TR256B ONLY: Visable Light Camera, Infared and visiable light fusion
Q&A
What is the difference between TR120 and TR120E
TR120E is a basic version of thermal imager in mini size and very easy to carry. TR120 is a professional version of themal imager with the wider temeprature range,hight image resolution and the additional visable light camera and industrial application purpose.
What is the visible light camera for this thermal imager?
This thermal imnager is different from others that it can detect the objective with infared light or visiable light.
What is the temperature range for the infared thermal imager?
The temperature range is from -20℃ to 450℃ (4℉～842℉), it can cover the most applications.
Is it rechargeable? what is the battery?
The themal scanner is rechargeable and the battery is the high capacity lithium battery, it can last more than 10 hours.
What is the color choice for the image ?
It has total 6 color palettes - High Resolution Rainbow,Hot Red, Lava, Rainbow, Iron Red, White Heat.
How long is the shipping?
We have ready stock in US warehouse for this model and normally customer can receive the package within 3-5 days. For other aream, please kindly refer to the shipping solution page at https://www.mileseeytools.com/pages/shipping.
