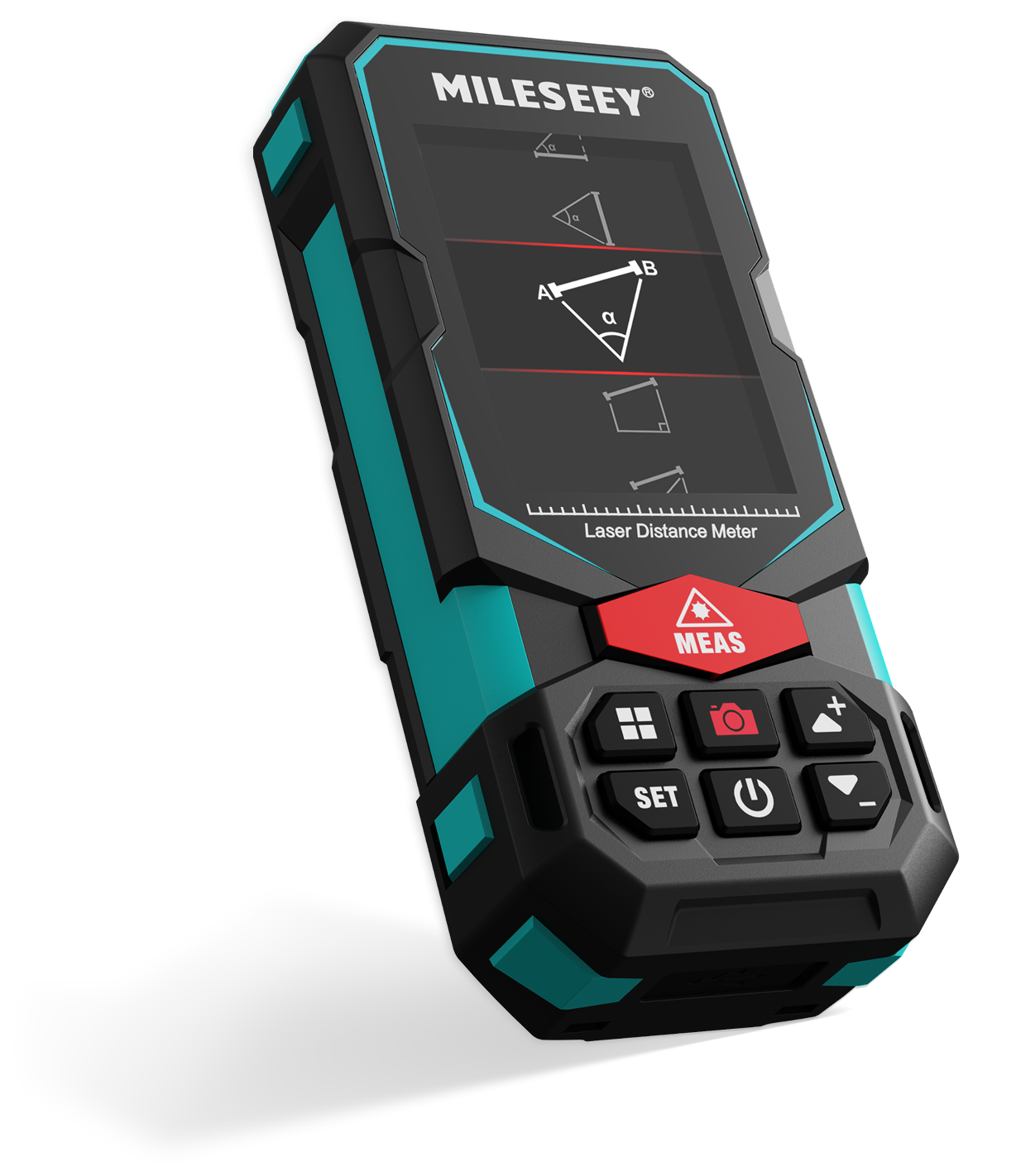

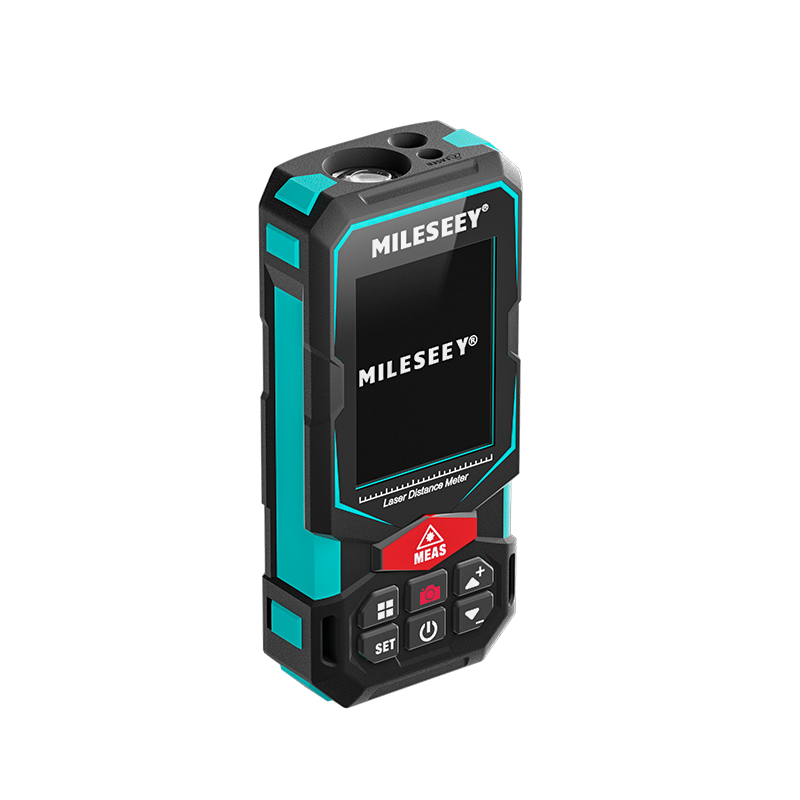

Mileseey S7 Outdoor Laser Distance Meter with Camera Viewfinder P2P Measure and Bluetooth
- New Version Outdoor Laser Measure
- Camera Viewfinder
- P2P Measure
- Multifunctional and Bluetooth Apps
P2P Measure
Point viewfinder
Bluetooth and apps
3 modes of power supply
Awards For Mileseey
Outdoor Laser Measure | S7 (S20)
Camera Viewfinder and P2P Measure

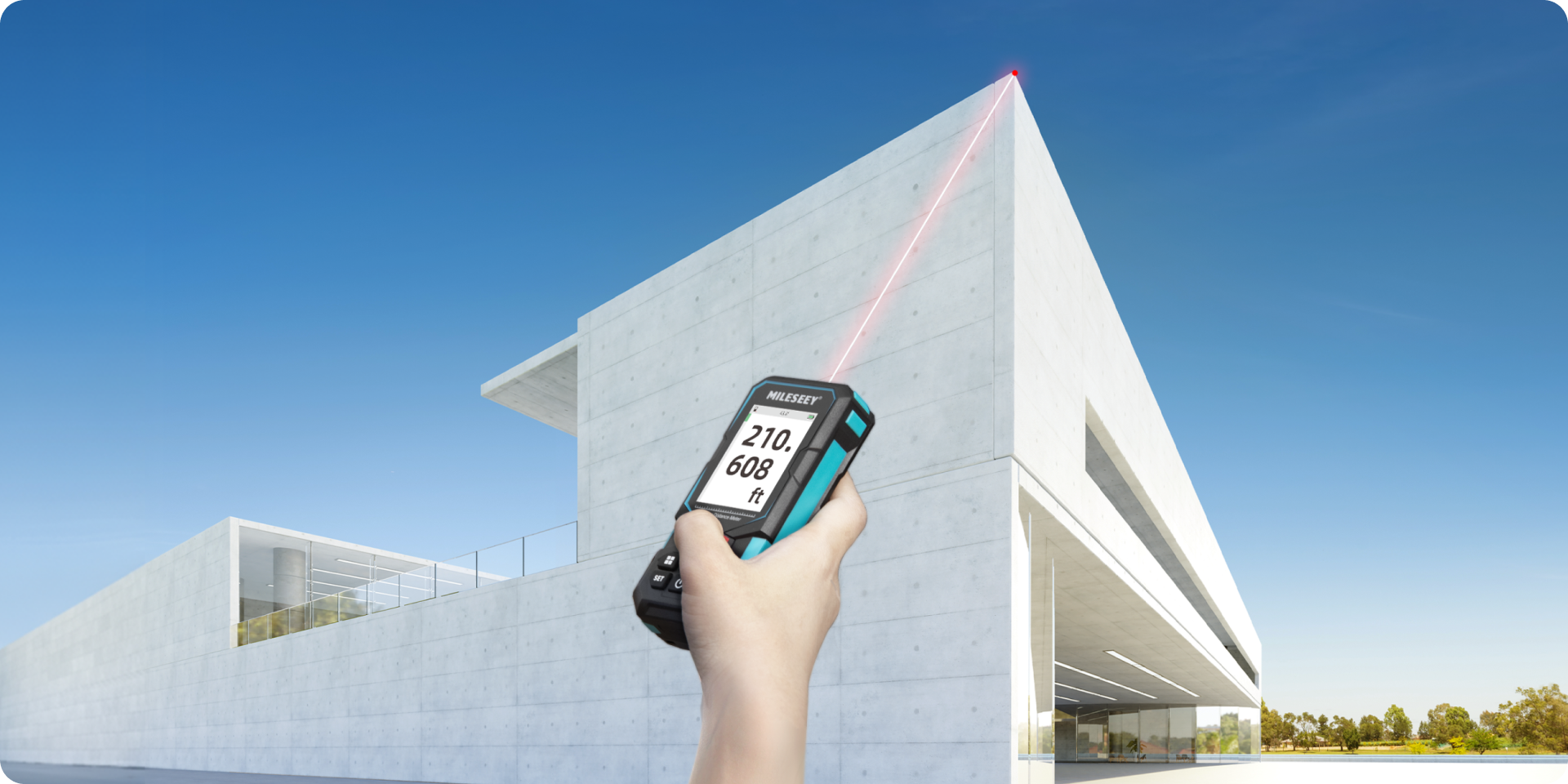

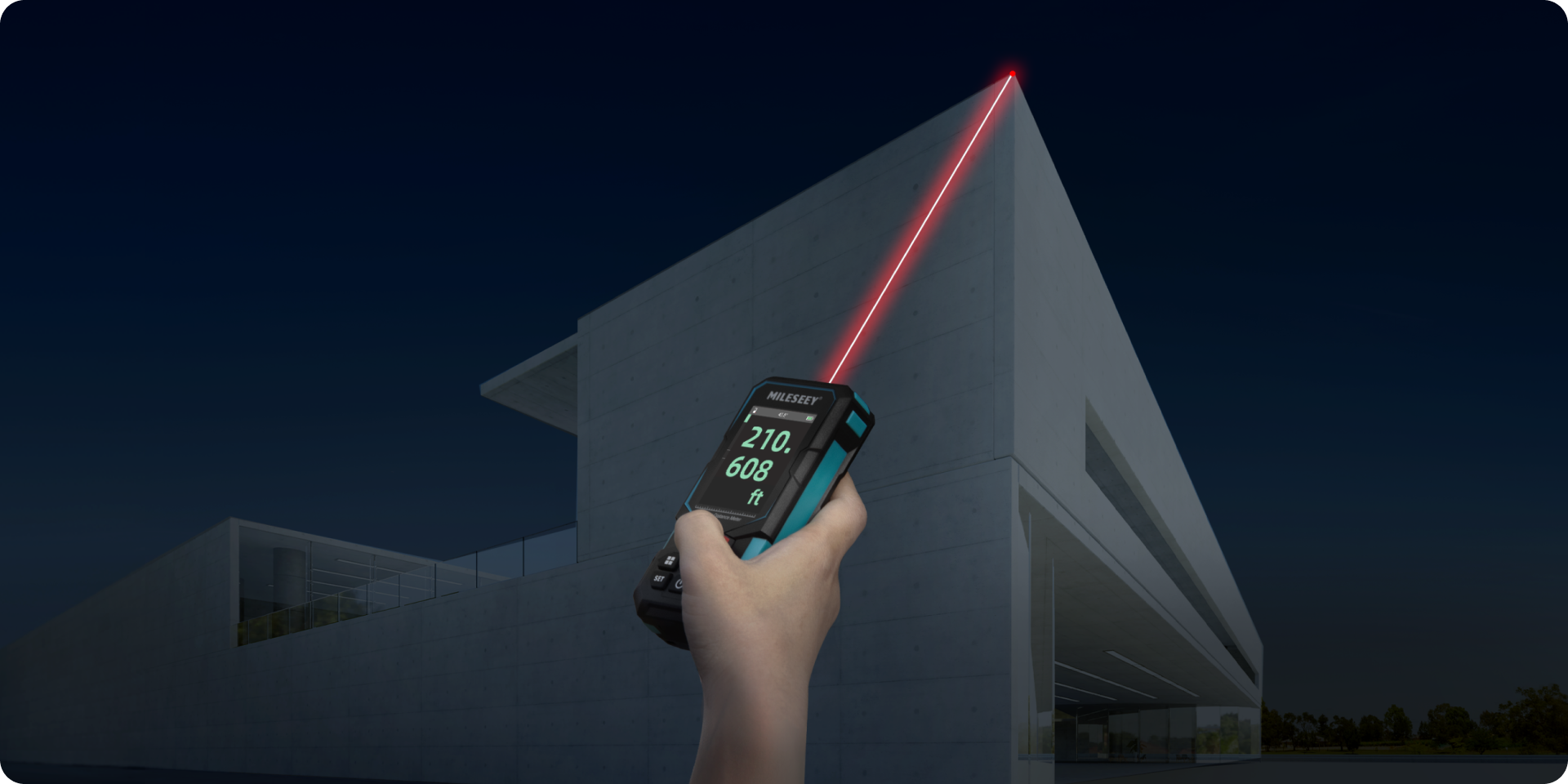

Designed for outdoor precision measurements in long-distance.
The patented outdoor technologies of PowerBurst and PowerChirp
extend the measurement range to a maximum of 330 feet and
provide accuracy up to +/- 1/16"

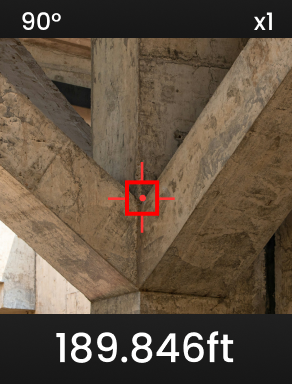

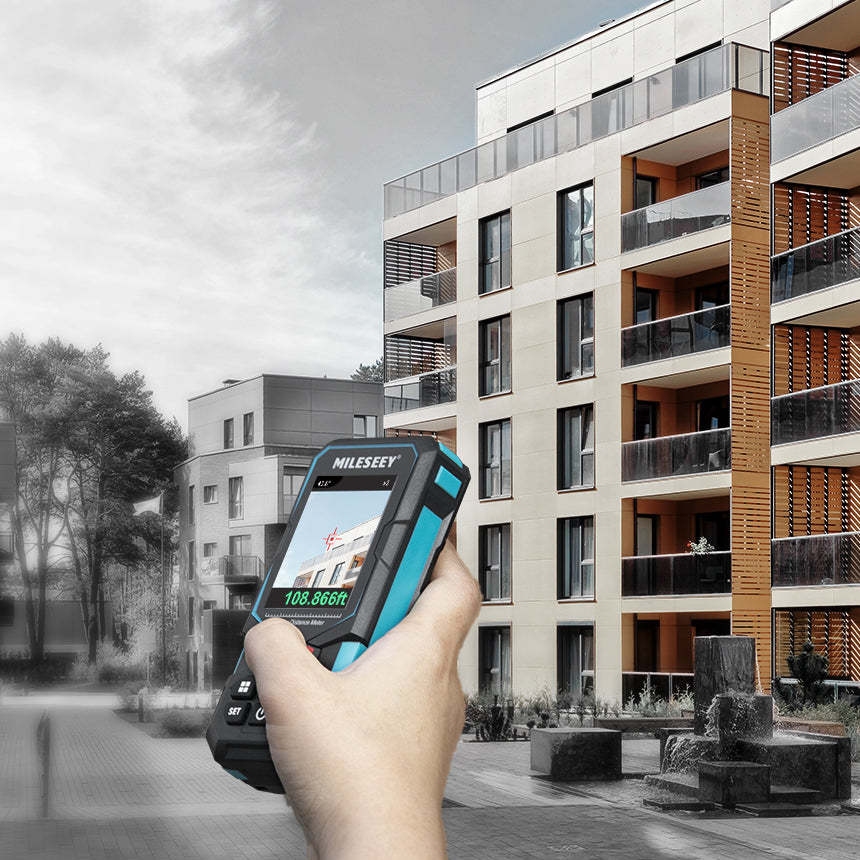

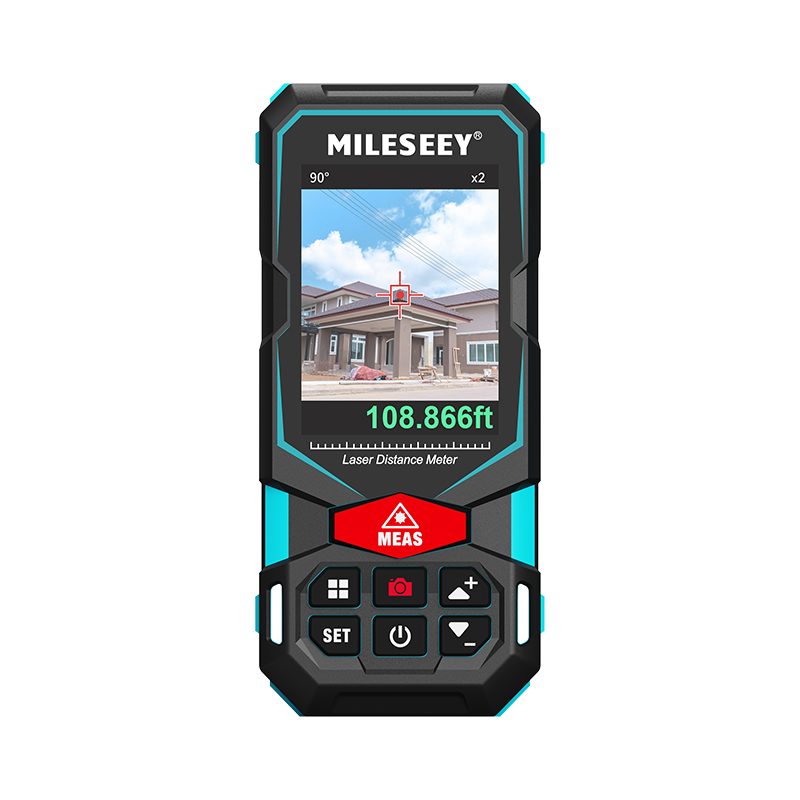

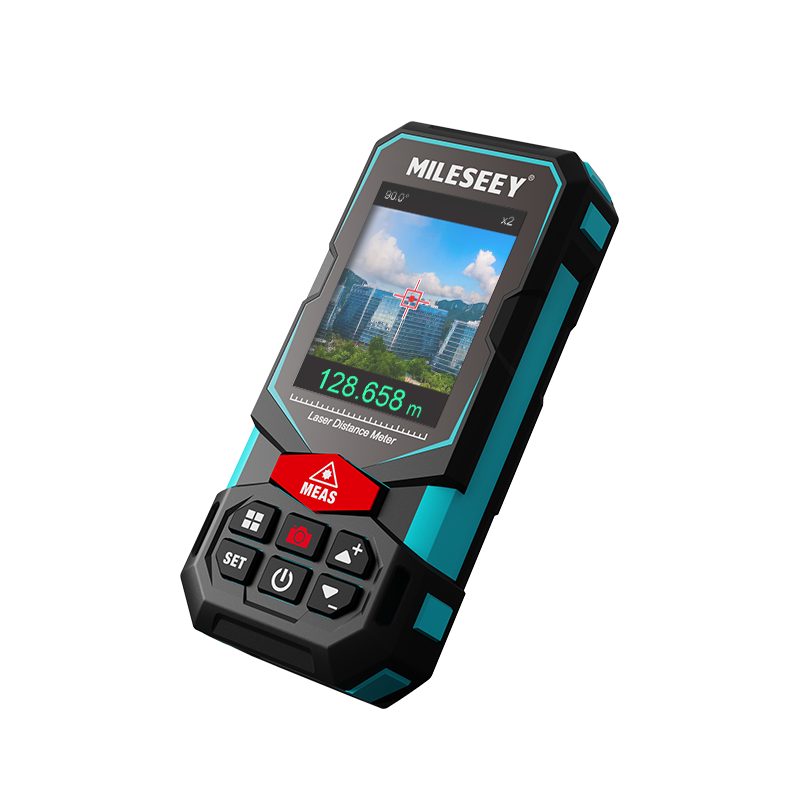

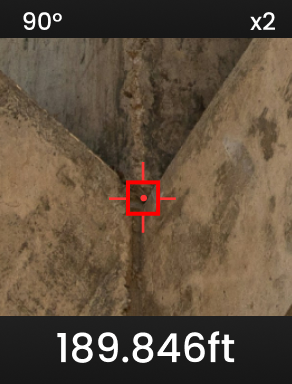

Point Viewfinder with Camera
The built-in viewfinder camera (2x zoom digital camera)
with on-screen aiming reticle ensures you to find the
laser spot with ease and take accurate outdoor
measurements confidently even when working in
bright sunlight conditions.

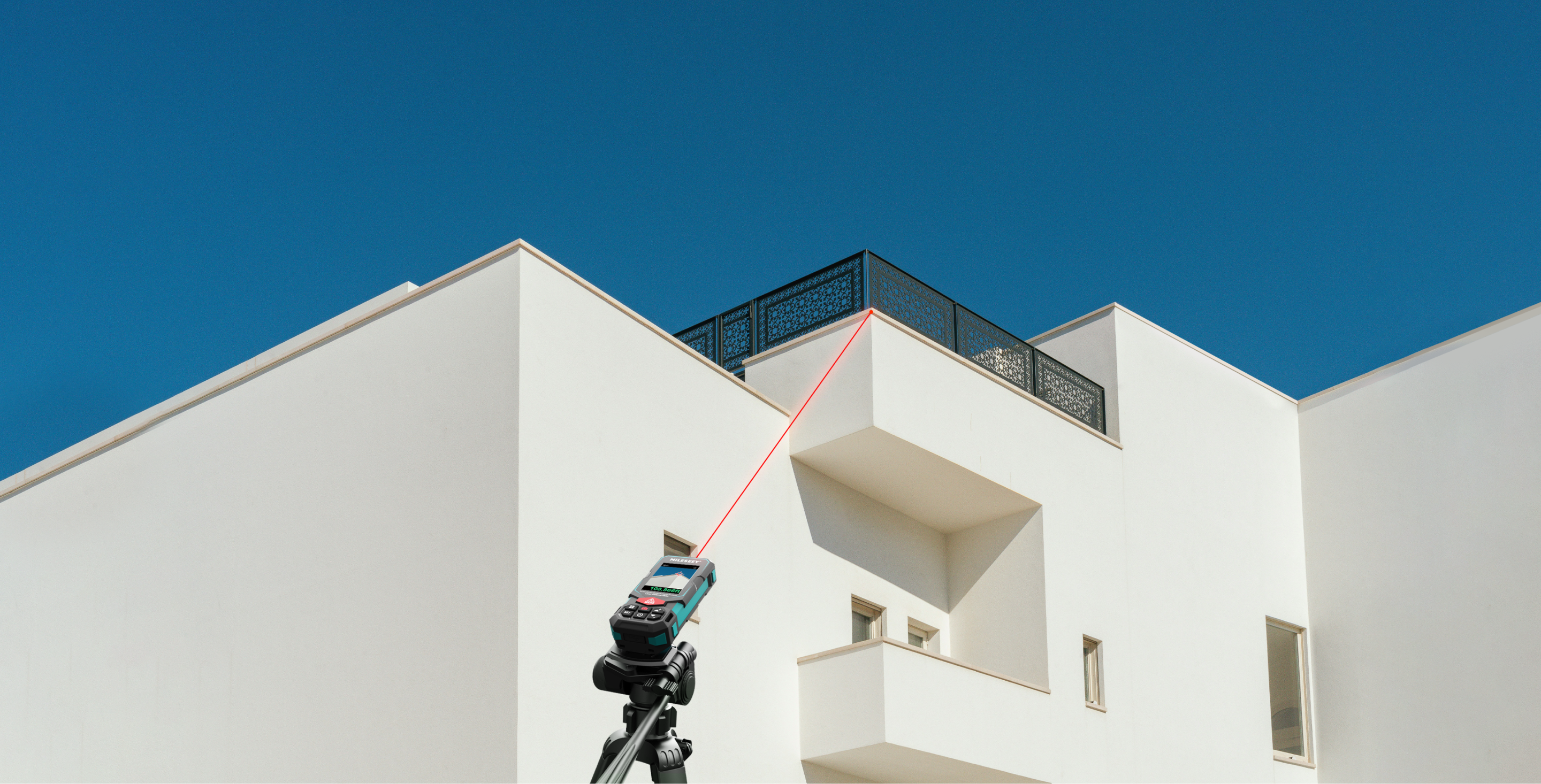

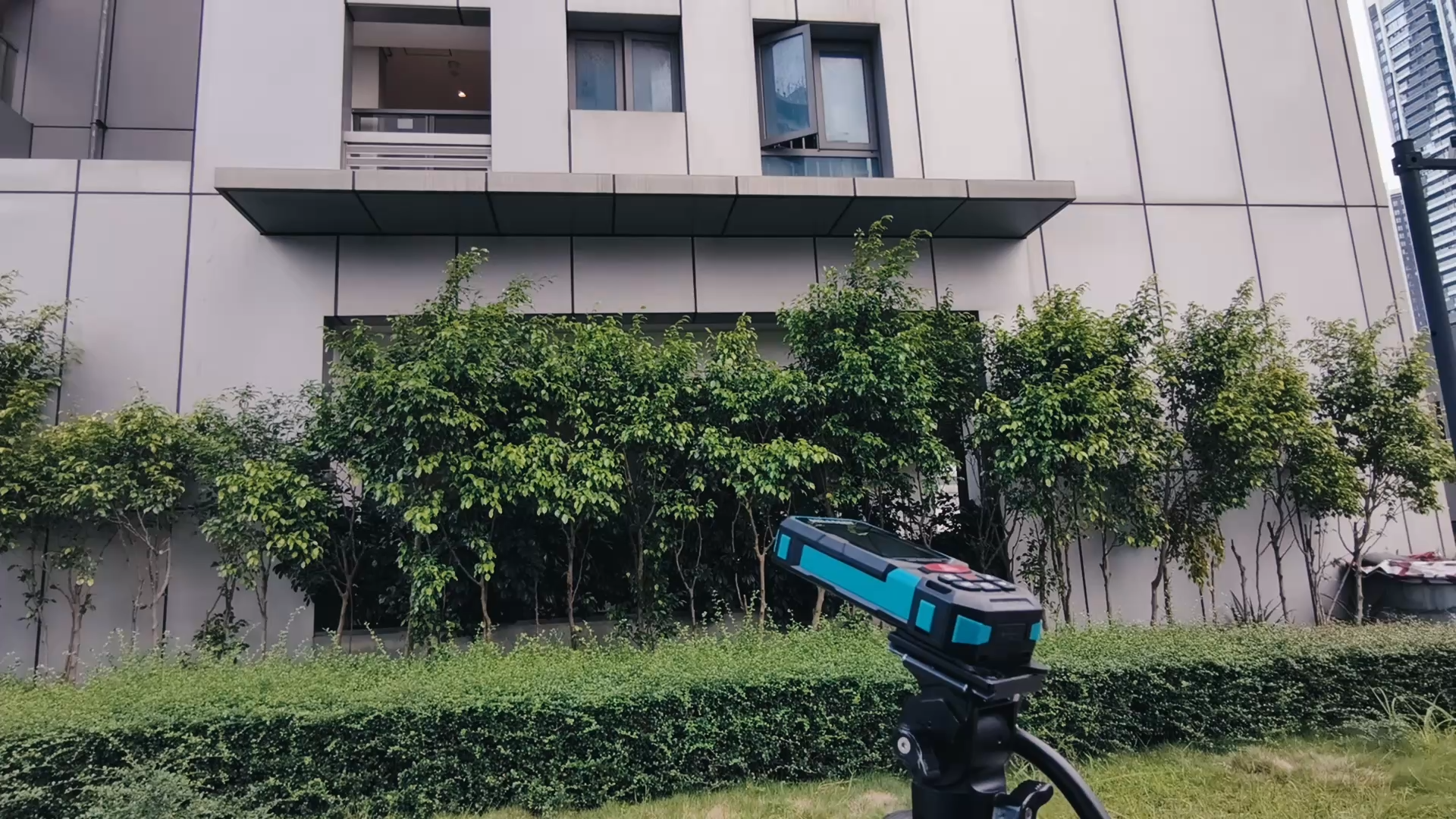

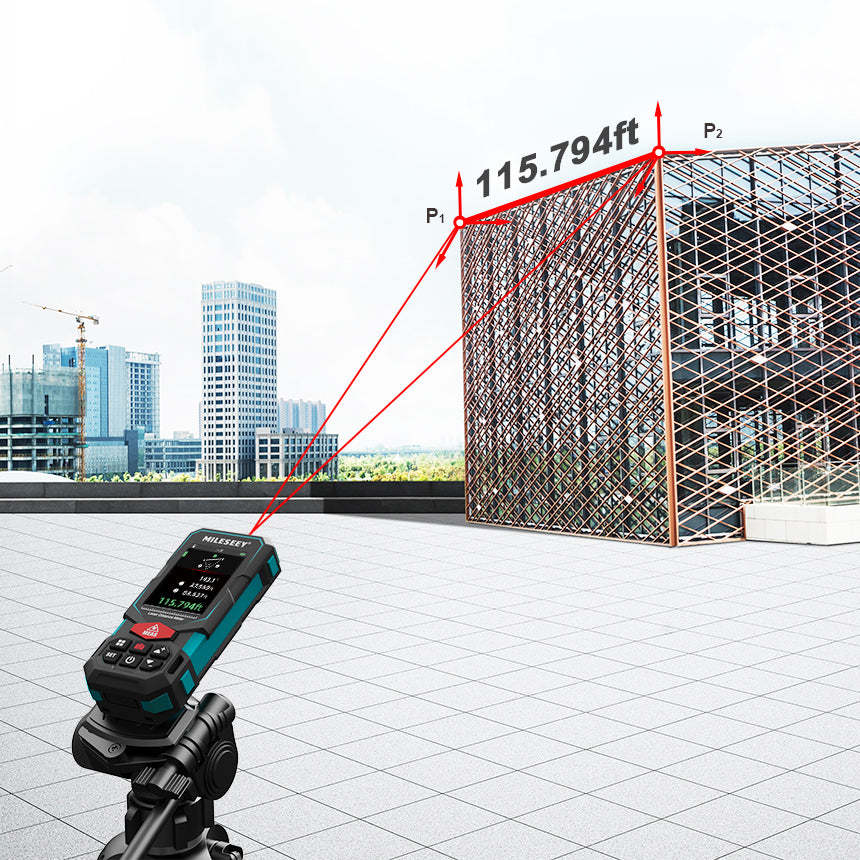

P2P Measurement
360° high-precision tilt sensor and integrated smart base
allow you to capture precise measurements between
any two points from a single remote location
(the p2p technology).

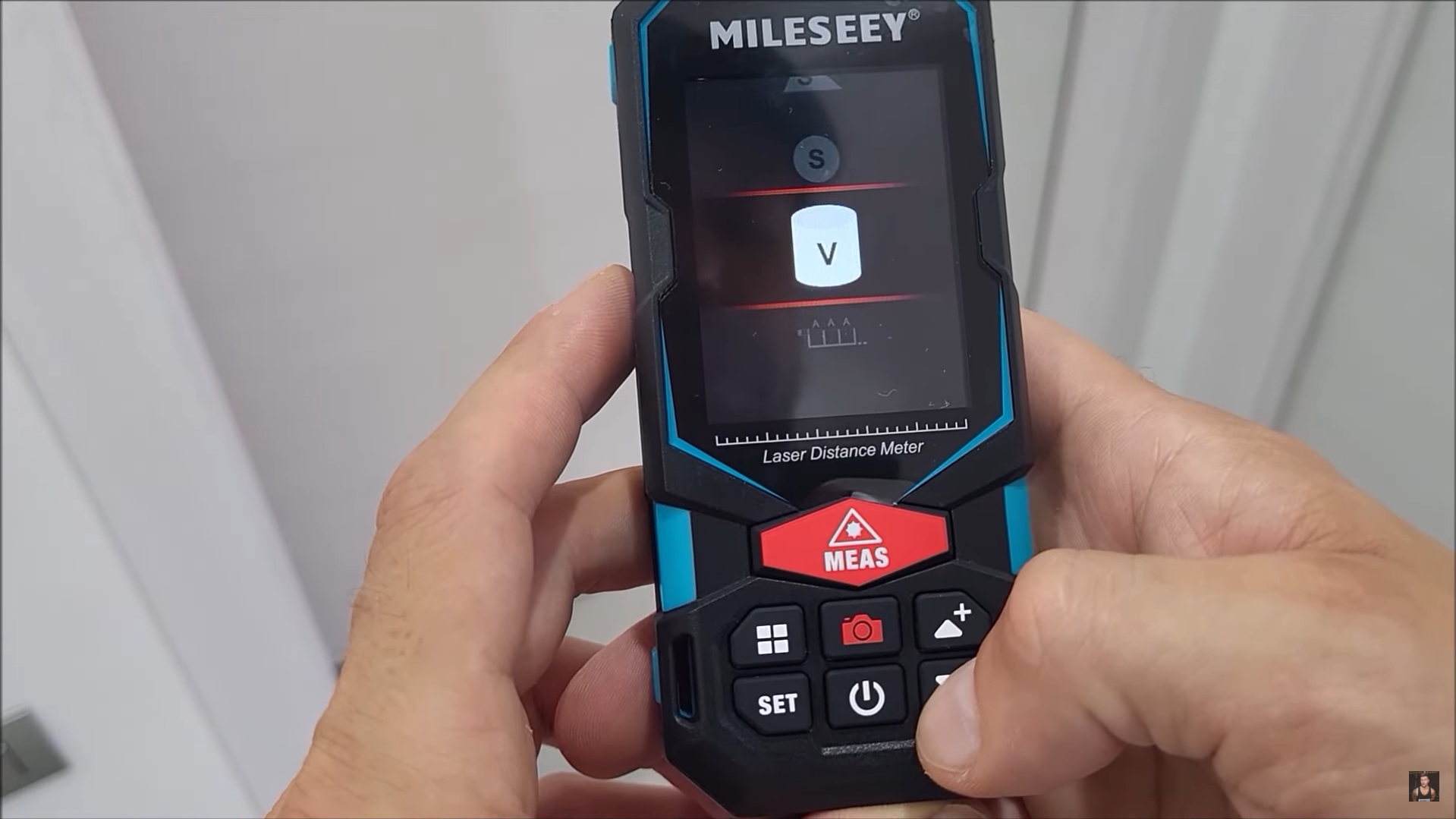

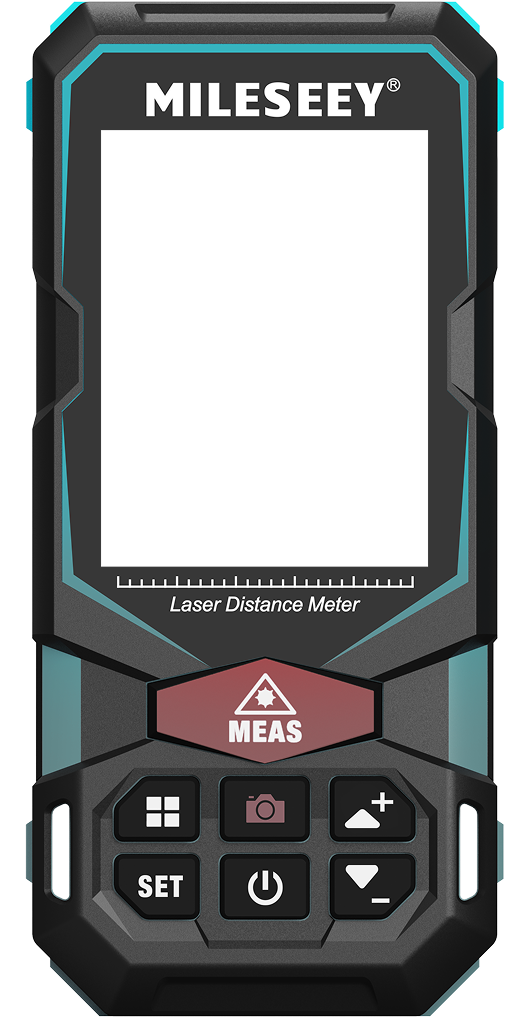

User-Friendly Interface
Designed with a user-friendly user interface
with intuitive navigation menus.
Easily switch between the black screen with
white text and white screen with black text.

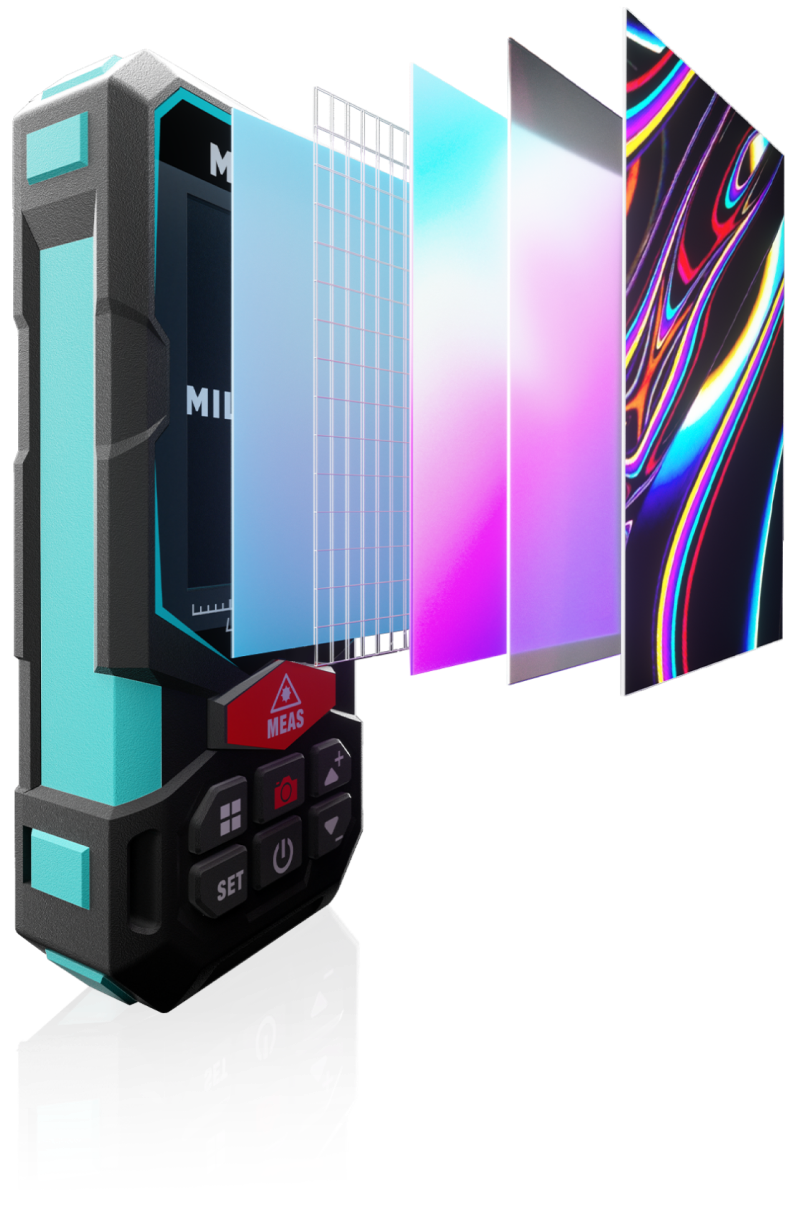

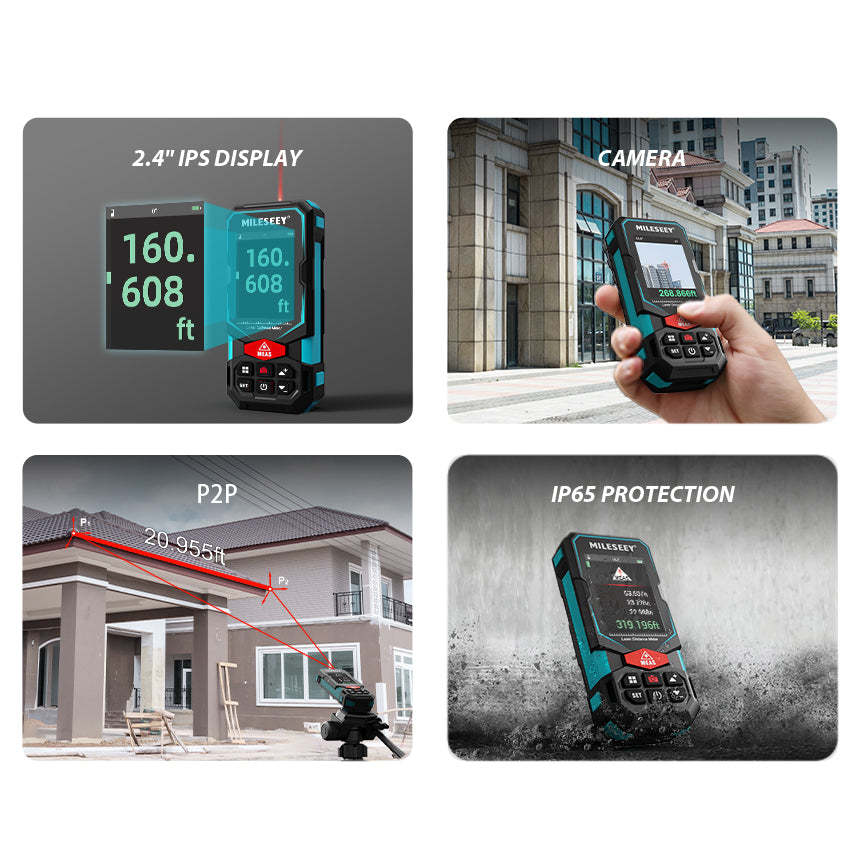

With its large 2.4" IPS display backlit display,
can be sure of clear measurement readings
even in sunlight.

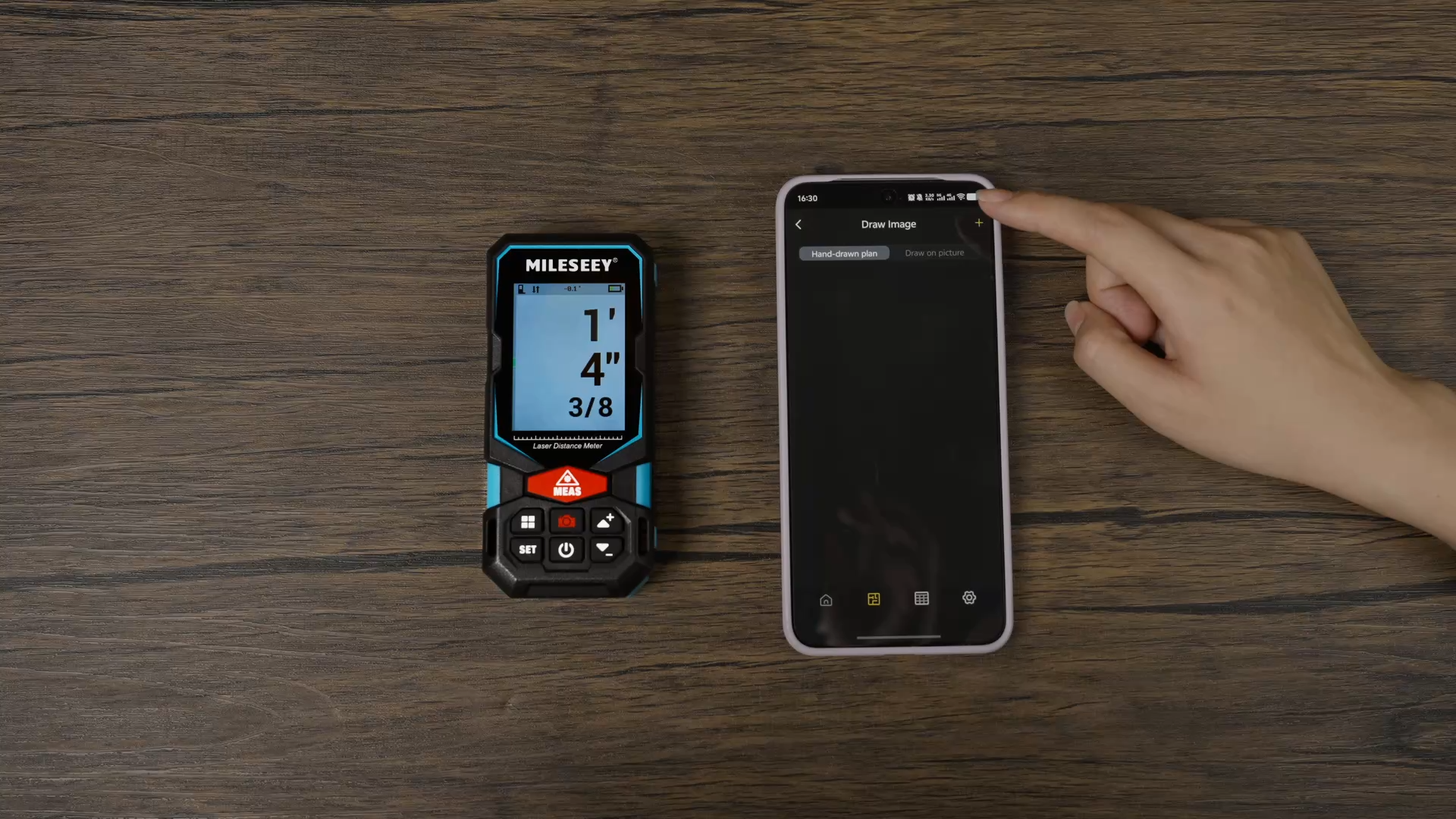

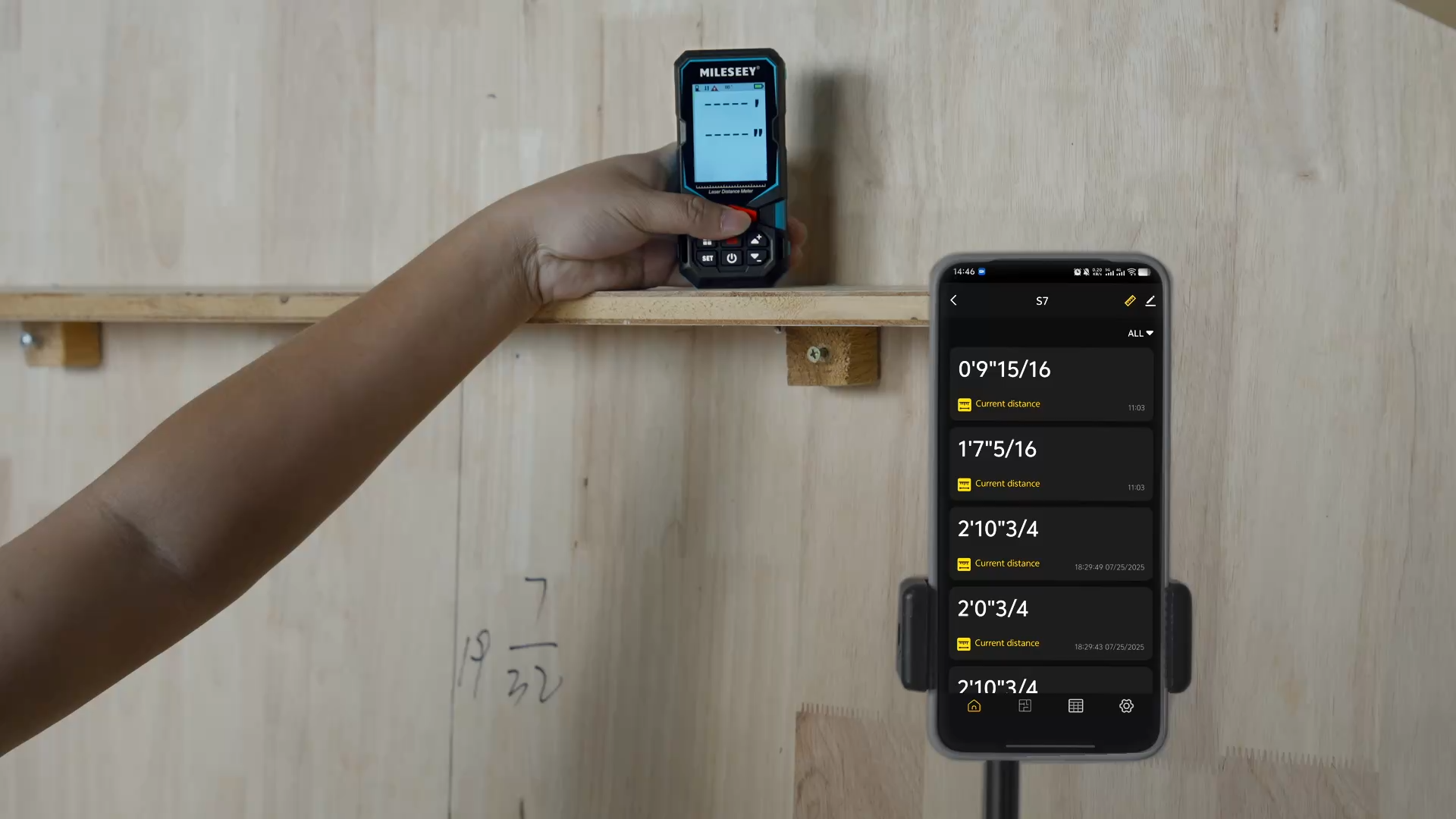

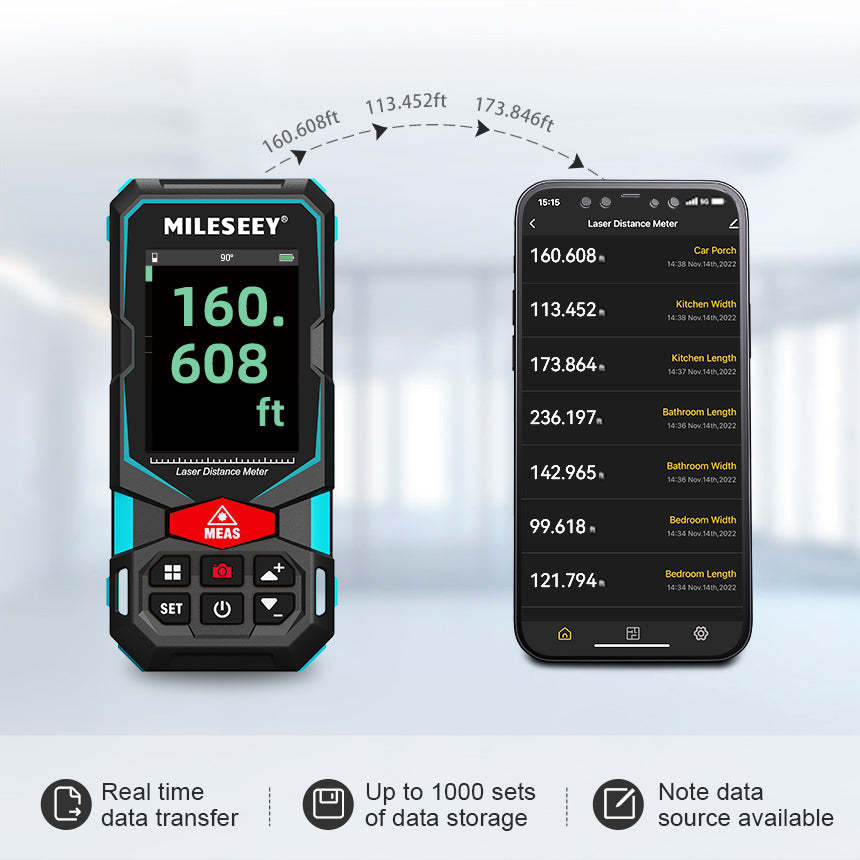

SMART APP CONNECTIVITY
Not just measure. Mileseey S7 can be connected to
smart APP(Smart Life) on mobile terminals such as
mobile phones and tablets.

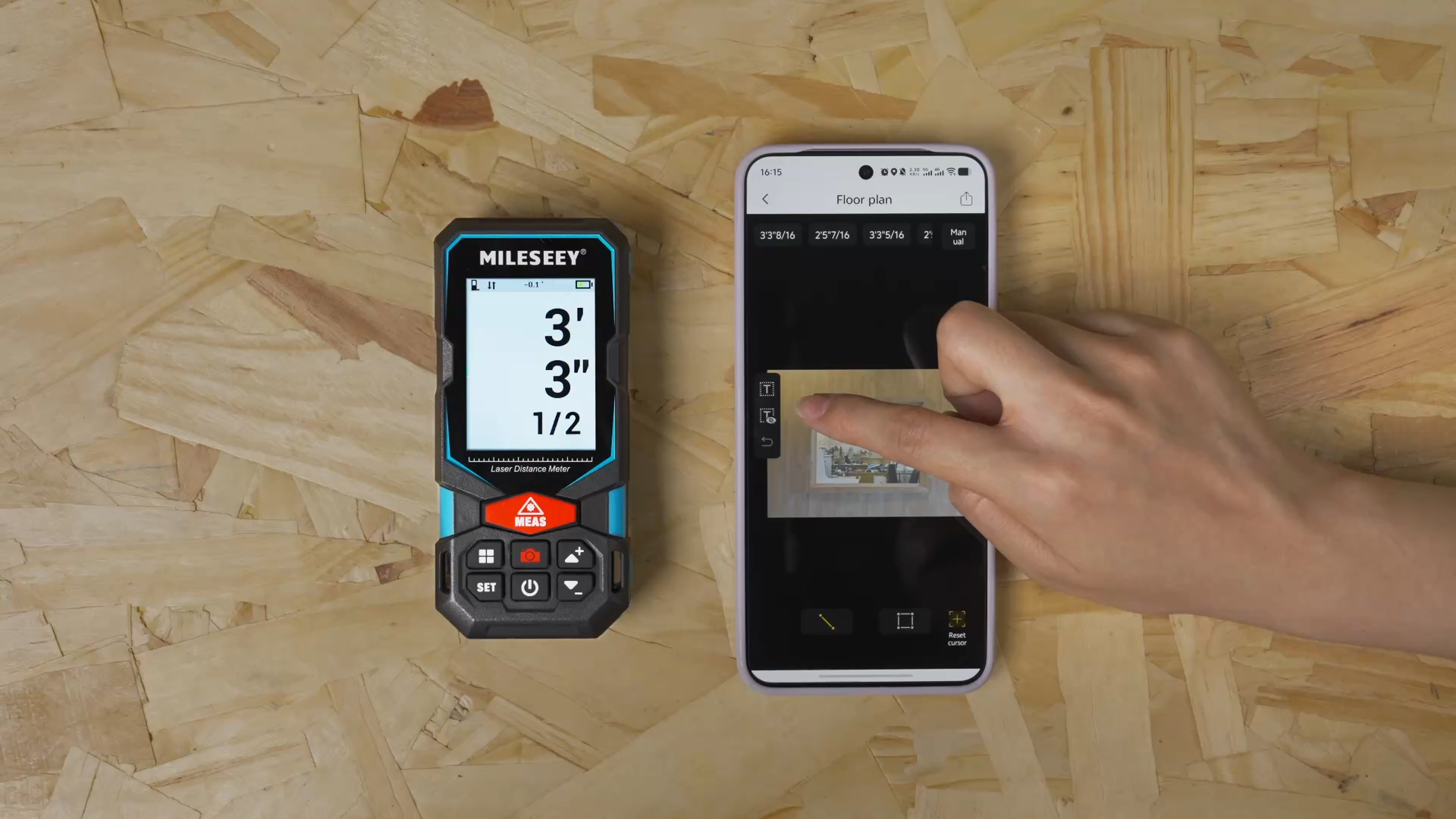

Dimensions can be entered directly on site photos,
and users can use the app to directly draw projects
and build plans. The built-in memory can store
up to 1,000 sets of data.

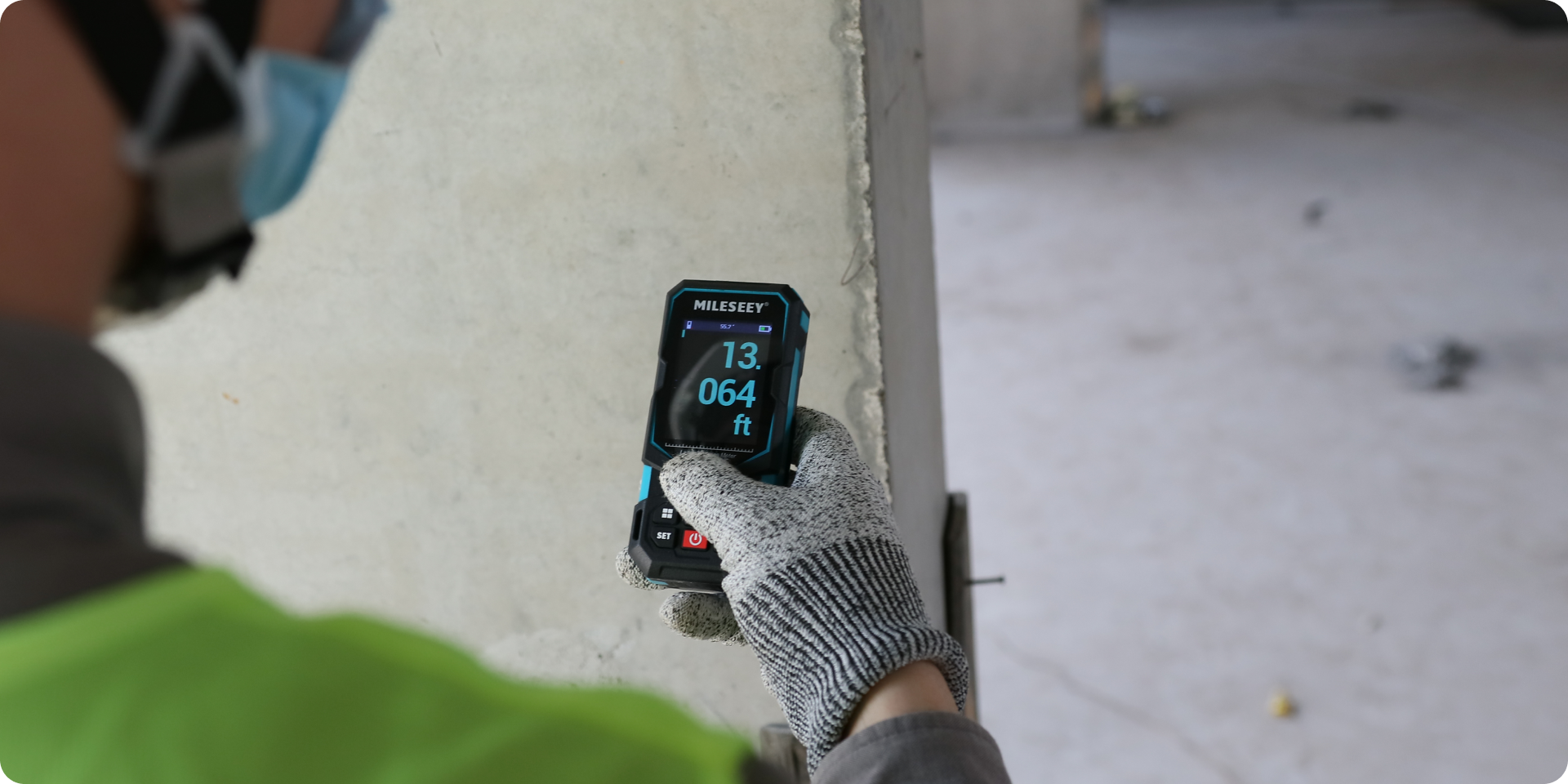

User-Friendly Design
User-friendly design with rotating display
keeps measurements in line with the device,
ensuring you can take readings from any angle

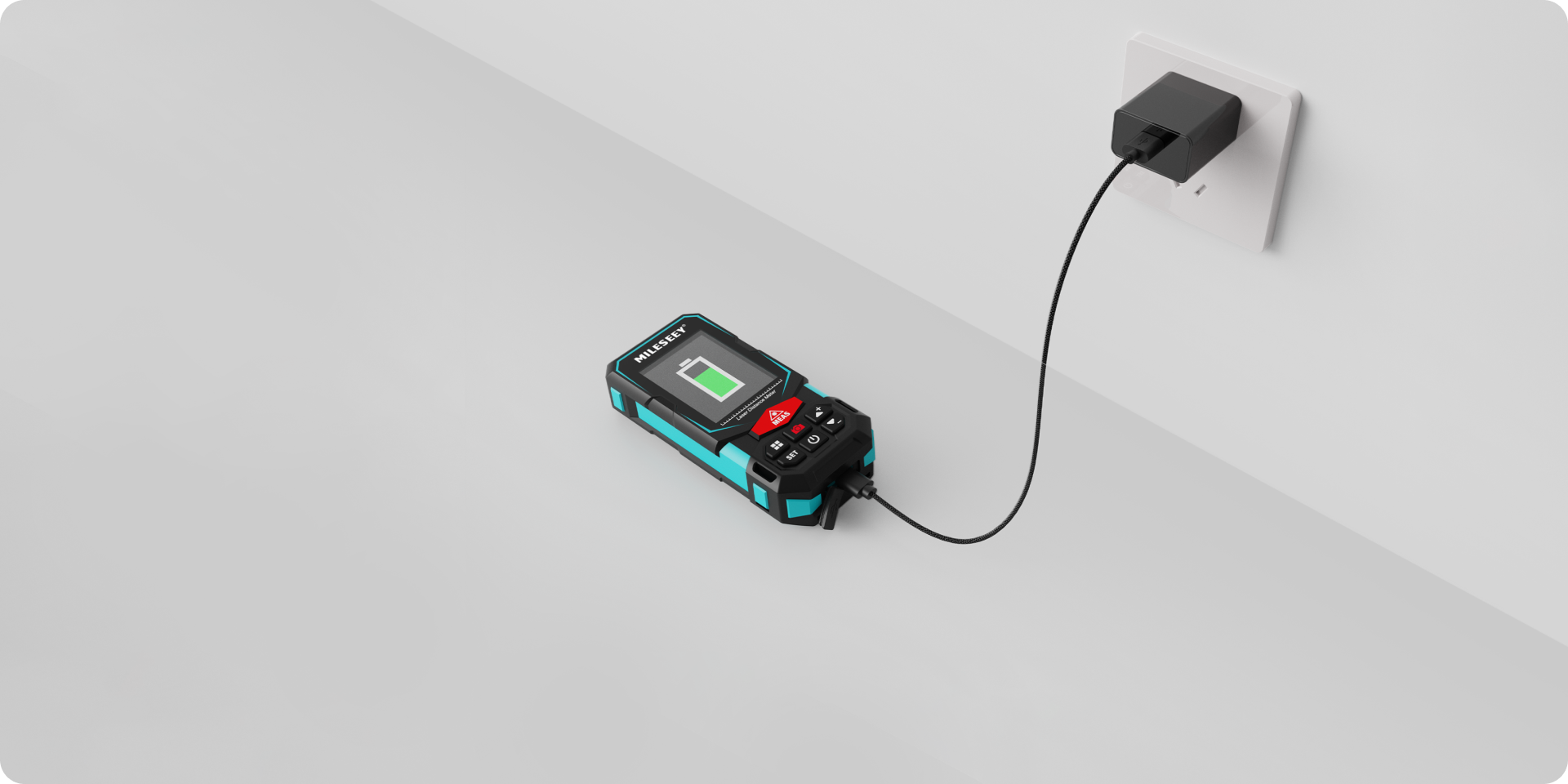

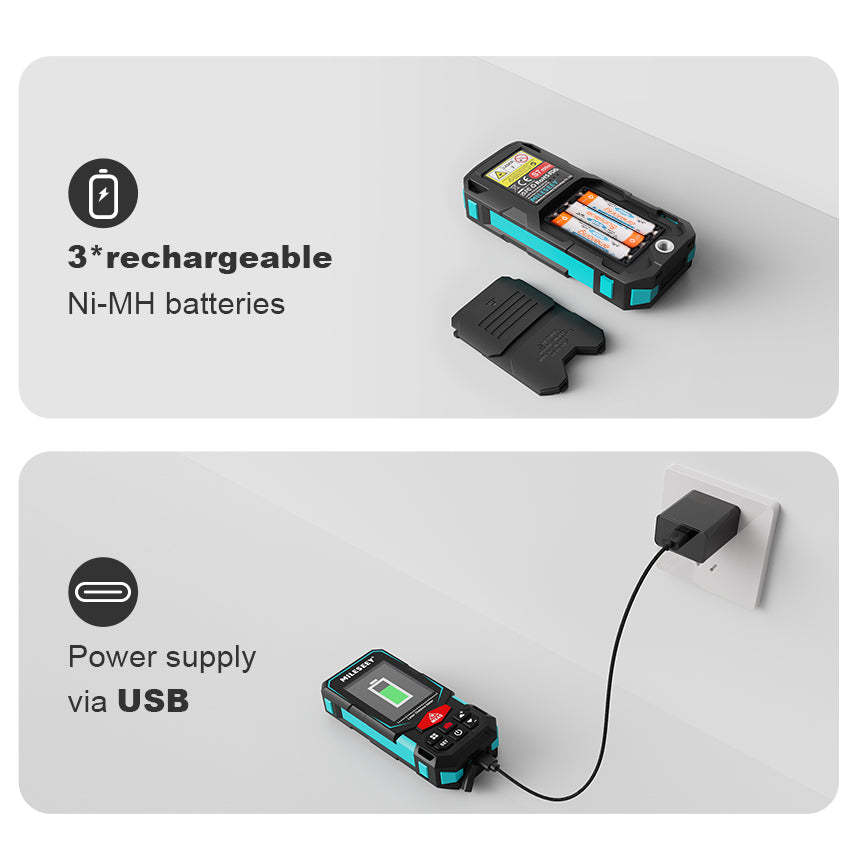

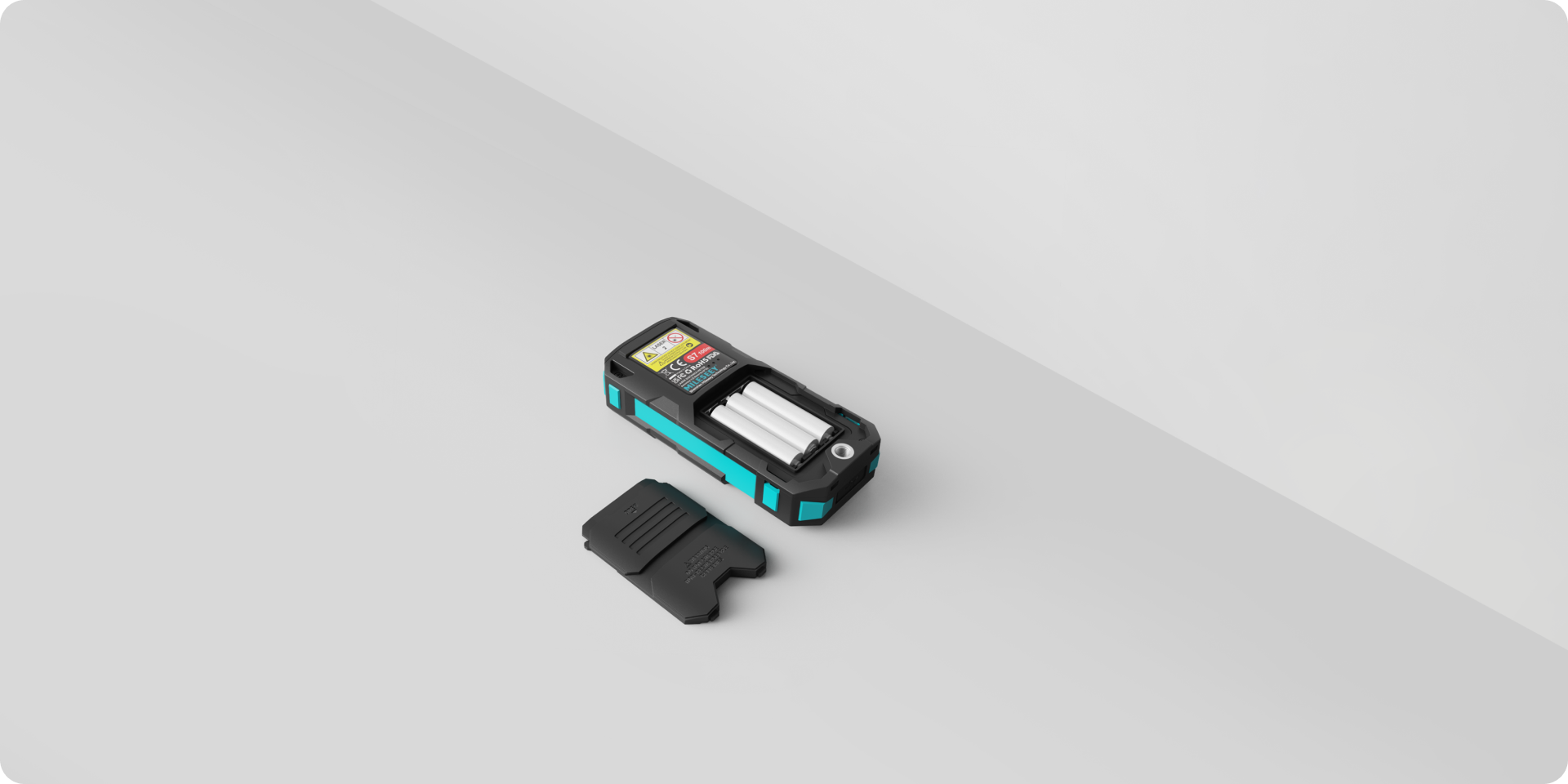

Optional Power Supply Solution
Rechargeable function with Ni-MH battery as a
universal power supply
USB power supply as optional in case of emergency.

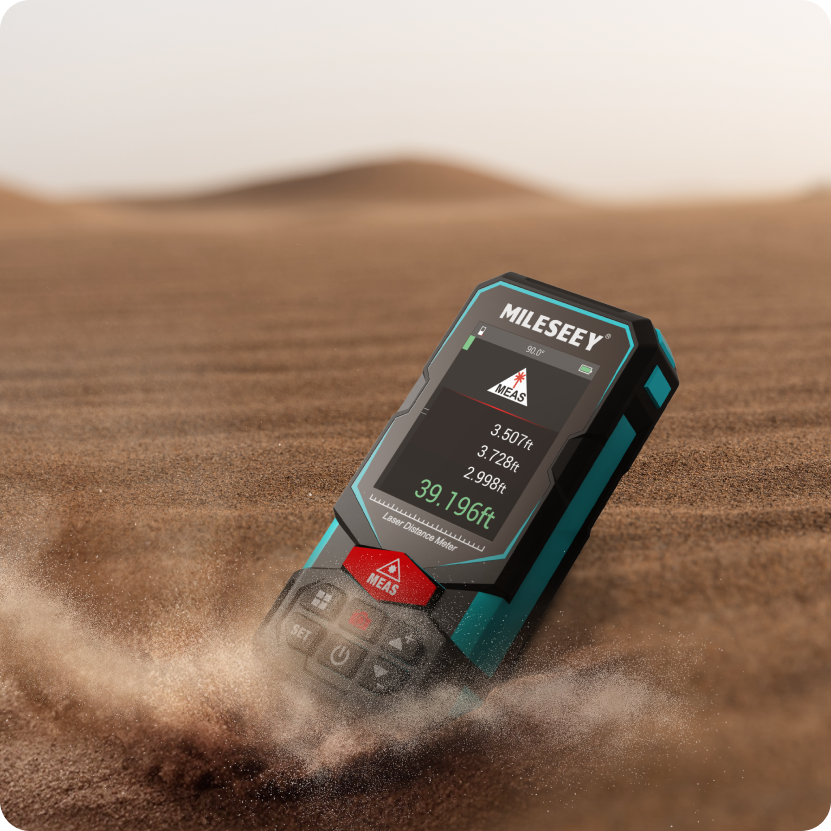

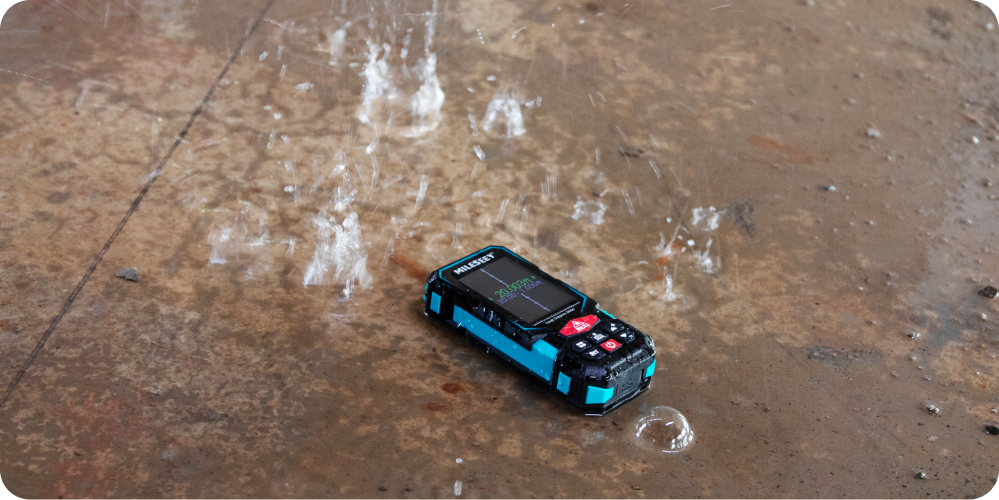

IP65 Rating
IP65 protection level, with excellent waterproof and
dustproof ability, which makes it perform well in the
rough outdoor jobsite.

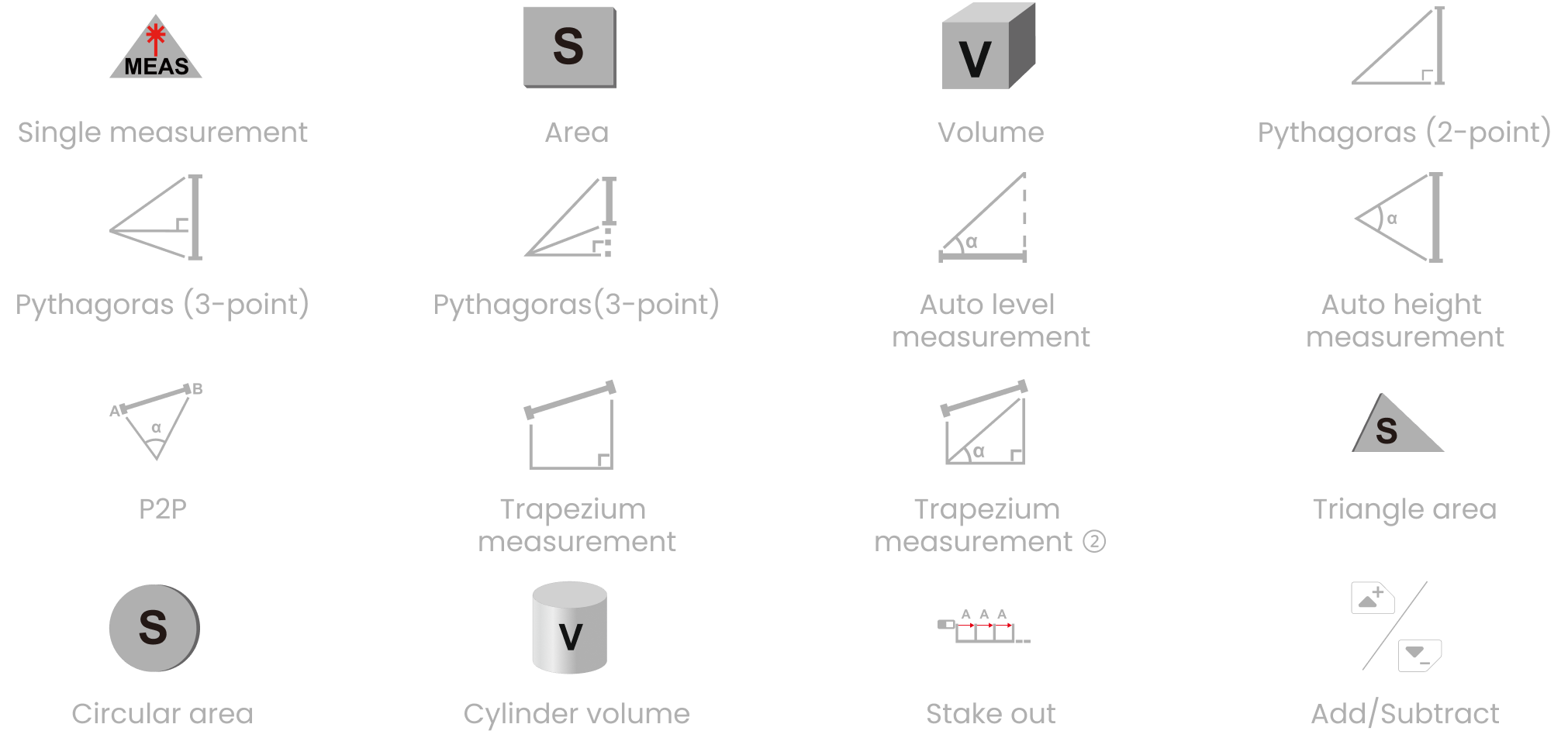

Widely Applications
The outdoor laser distance meter can
be widely used in the application of
project Planning,construction works,
indoor Decoration,engineering Survey
and Steel Enegineering
Applications
Specification
-
Model
S20(K3)
-
Point to Point (P2P)
√
-
Range
0.2-100m
-
Point Finder Camera
√
-
Accuracy
2.0mm
-
Bluetooth
√
-
Measuring unit
m/ft/in/ft+in
-
Wireless Charging
n/a
-
Single Measurement
√
-
Tilt Sensor
√
-
Continous Measurement
√
-
Screen Rotation
√
-
Area
√
-
Screen Display
2.4 inch color LCD display
-
Volume
√
-
Tilt Sensor
√
-
Pythagoras(2-point)
√
-
Display Brightness
Indoor/Outdoor
-
Pythagoras(3-point) 1
√
-
Screenshot Storage
100pcs
-
Pythagoras(3-point) 2
√
-
Memory
1000sets
-
Auto Level
√
-
Reference
Top/Bottom/Tripod
-
Add/Subtract
√
-
Protection Class
IP65
-
Trapezium1
√
-
Laser Class
Class II
-
Trapezium2
√
-
Laser Type
630-670nm,<1mW
-
Triangle Area
√
-
Battery Type
3*AAA NI-MI rechargeable batteries
-
Cylindrical Volume
√
-
Operating Temperature
o°C~+40°C
-
Auto Height
√
-
Auto Power Switch-off
after 180s of inactivity
-
Stake Out
√
-
Dimension(mm)
120*56.5*28mm
-
Constant Setting
√
-
Weight
140g
Find The Right Laser Meter For You

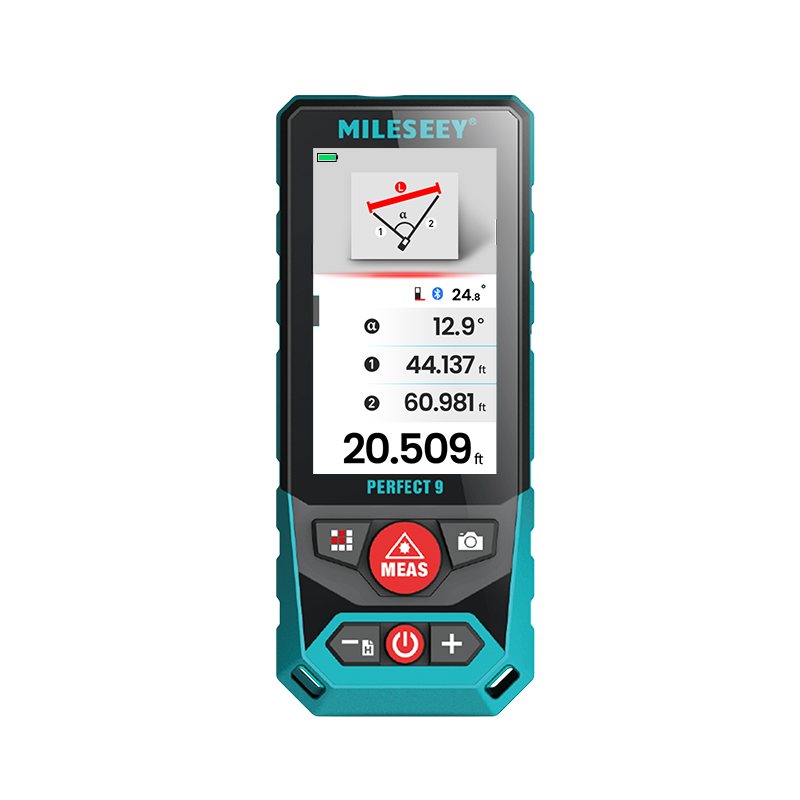

P9 Outdoor Laser Measure with High Precesion Camera Viewfinder Optional Wireless Charging
